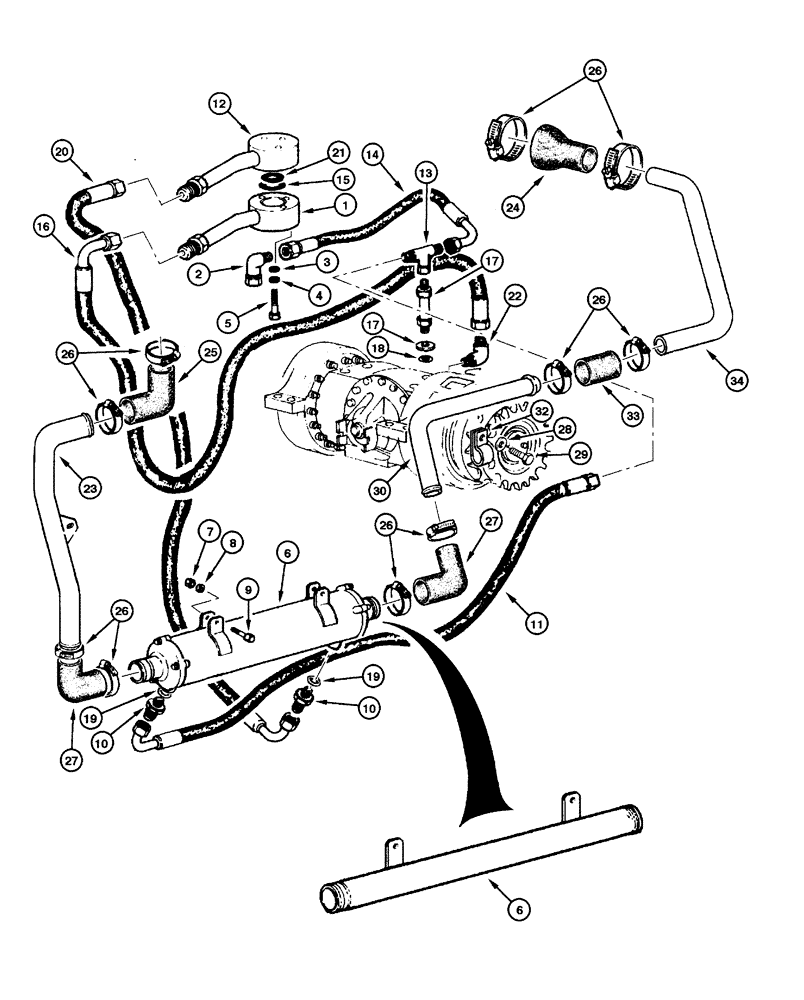

Запчасти Case 845 (06.35[00]) - REAR AXLE CLARK - OIL COOLING (06) - POWER TRAIN

1

75252530

FLANGE

1шт.

2

70921279

ELBOW

1шт.

3

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

4

10516479

LOCK WASHER

3шт.

5

10903030

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

6

75257700

OIL COOLER

Graziano

1шт.

6

75257806

RIGID TUBE,47 mm ID, 50 mm OD, 795 mm Length

Clark

1шт.

7

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

2шт.

8

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

9

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

2шт.

10

75252993

HYD CONNECTOR

2шт.

11

75252543

FLEXIBLE HOSE

1шт.

12

75253556

TUBE

1шт.

13

70921276

HYD CONNECTOR

1шт.

14

75252544

FLEXIBLE HOSE

1шт.

15

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

16

75252387

HOSE,19mm ID x 1250mm L, SAE 100R2

1шт.

17

75253076

HYD CONNECTOR

1шт.

18

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

19

73136636

COPPER WASHER,26.3mm ID x 38mm OD x 5mm Thk

2шт.

20

75252541

FLEXIBLE HOSE

1шт.

21

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

22

70921203

HYD CONNECTOR

1шт.

23

73163941

TUBE

1шт.

24

73162686

HOSE

1шт.

25

75249382

HOSE,51.00 mm ID x 85.00 mm, SAE 20R4 D1

1шт.

26

70921913

HOSE CLIP

10шт.

27

75221770

ELBOW,51mm ID x 85mm L, SAE 20

2шт.

28

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

29

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

30

73163940

TUBE,46.6 mm ID, 50.8 mm OD, 710, 255 mm Length

1шт.

31

75239659

BRACKET

1шт.

32

70927313

CLAMP

1шт.

33

73107726

HOSE

1шт.

34

73163939

TUBE

1шт.
