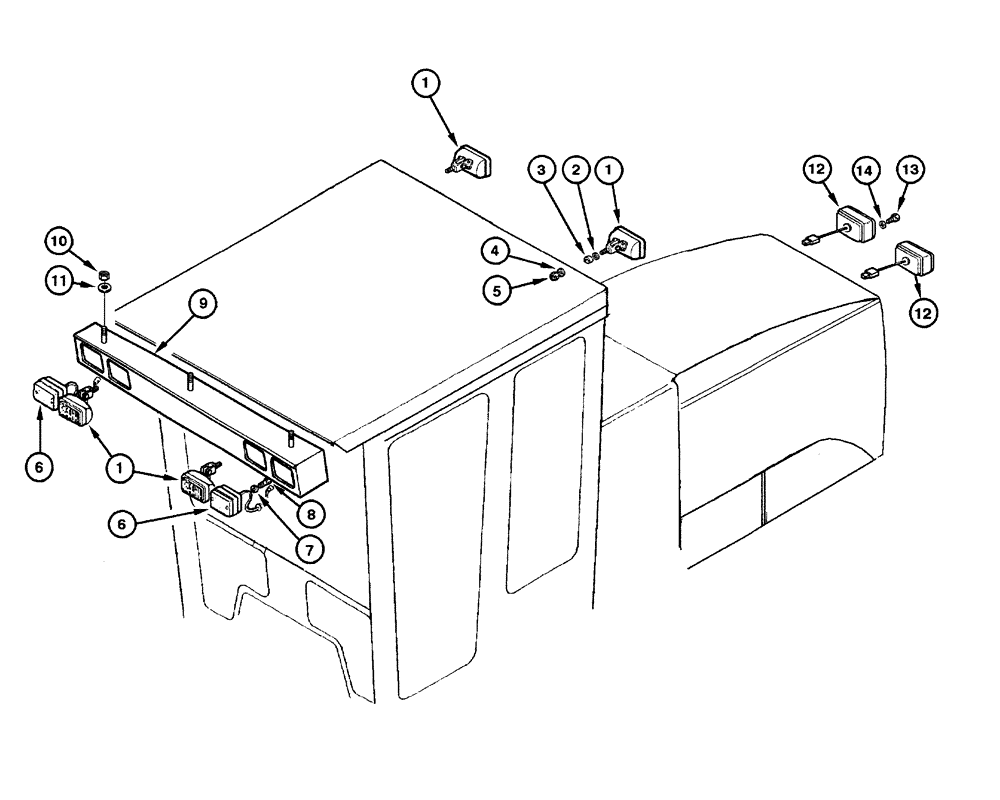

Запчасти Case 845 (04.21[00]) - HEADLIGHT AND LANTERN - CAB (04) - ELECTRICAL SYSTEMS

1

75247405

LAMP

Front and rear cab (pg.4-22)

4шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

3

79089658

PAD

4шт.

4

75252602

WASHER,10.5mm ID x 28.5mm OD x 1.2mm Thk

4шт.

5

12104121

NUT

4шт.

6

75251230

LAMP,24V, 21W, Amber

Turn Signal Light

2шт.

7

12644421

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

8

70928182

SCREW

4шт.

9

75321851

BRACKET

1шт.

10

12104121

NUT

3шт.

11

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

12

73163878

LIGHT ASSY.,24V, 21W, Amber/Red

RH (pg.4-24)

1шт.

12

73163879

LIGHT ASSY.,24V, 21W, Amber/Red

LH (pg.4-24)

1шт.

13

10977611

SCREW

4шт.

14

11195471

LOCK WASHER

4шт.
