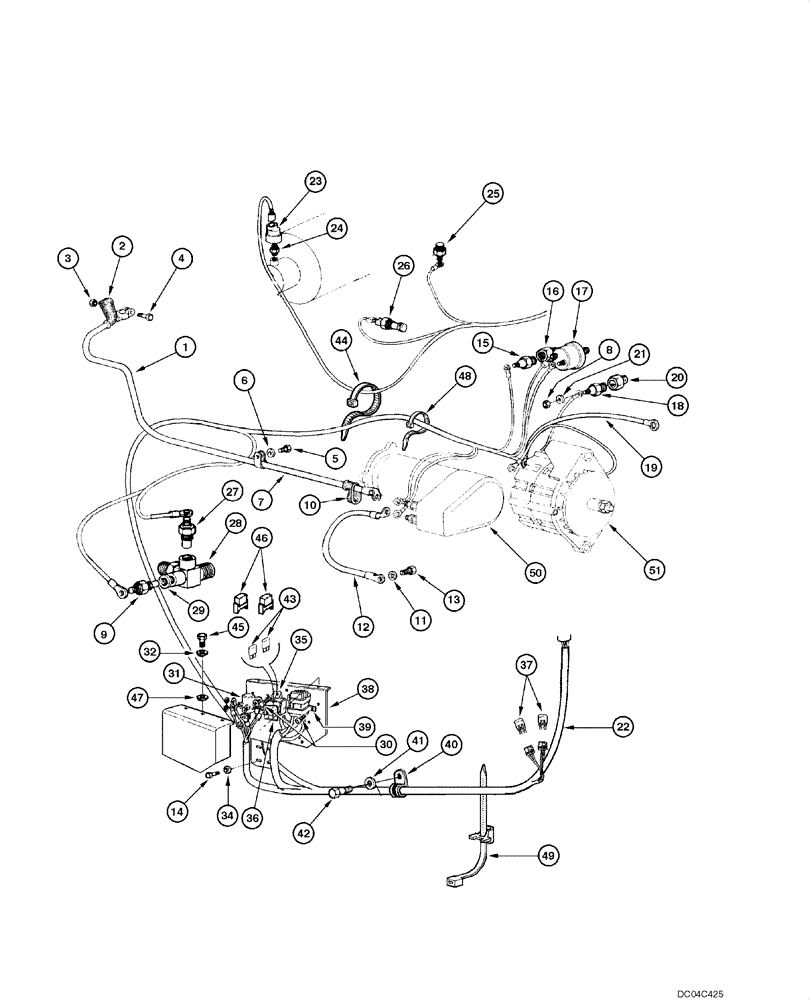

Запчасти Case 845 (04.11[00]) - ELECTRIC SYSTEM - ENGINE (04) - ELECTRICAL SYSTEMS

1

75324400

ELECTRIC CABLE

1шт.

2

8321668

BOOT

1шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

11945008

SCREW,Sqr Head, M6 x 1 x 30mm

Sq. Hd, M6 x 1 x 30

1шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

6

10516671

LOCK WASHER

1шт.

7

549064

CLAMP

1шт.

8

70910251

NUT

1шт.

9

75236111

TEMPERATURE SENDER,5/8" - 18

1шт.

10

4956122

PROTECTION CAP

1шт.

11

14476531

WASHER

1шт.

12

73152169

FLEXIBLE CONTROL

1шт.

13

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

14

11112331

BOLT,Hex, M12 x 28mm, Cl 10.9, Full Thd

2шт.

15

75236113

SENSOR

Water Temp Gague

1шт.

16

75214505

HYD CONNECTOR

1шт.

17

75236112

SENSOR

ENGINE OIL PRESSURE SWITCH

1шт.

18

73113214

THERMOSTATIC SWITCH

Water Temp Switch for the Temp Light

1шт.

19

73126797

ELECTRIC CABLE,228.6mm L

1шт.

20

70901828

BUSHING

1шт.

21

70904203

LOCK WASHER

1шт.

22

75322771

ELECTRIC CABLE

1шт.

23

79102142

INDICATOR

1шт.

24

70916634

HYD CONNECTOR

1шт.

25

73113214

THERMOSTATIC SWITCH

1шт.

26

75322672

SENSOR

HYDRAULIC FILTER RESTRICTION SWITCH

1шт.

27

73113213

SWITCH

1шт.

28

75254122

HYD CONNECTOR

1шт.

29

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

1шт.

30

10977731

BOLT,Hex, M5 x 14mm, Cl 10.9, Full Thd

3шт.

31

73117176

SWITCH

2шт.

32

10516473

WASHER

5шт.

33

75322088

COVER

1шт.

34

10520121

WASHER

2шт.

35

50001484

BRACKET

1шт.

36

5962562

COVER

1шт.

37

75283949

DIODE ELEMENT

2шт.

38

75322111

SUPPORT

1шт.

39

75255947

CLAMP

1шт.

40

10450690

CLAMP,20mm, Coat, 9mm Bolt Hole, P Type

2шт.

41

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

42

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

43

84183837

FUSE,80A, Maxil, Natural

2шт.

44

75201642

CLAMP

10шт.

45

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

46

73402889

DOOR

COVER

2шт.

47

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

5шт.

48

75201641

CLAMP

1шт.

49

75284071

CLAMP

1шт.

50

75323045

STARTER MOTOR

Starter Assy, See Figure 04.01

1шт.

50

75264240R

REMAN-STARTER

845 Motor Grader ASN 020001, Starter Assy, Reman for New PN 75323045

1шт.

50

75264240C

CORE-STARTER

Return Number

1шт.

51

REF

INSTRUCTION

See Figure 04.02 - 04.05

1шт.
