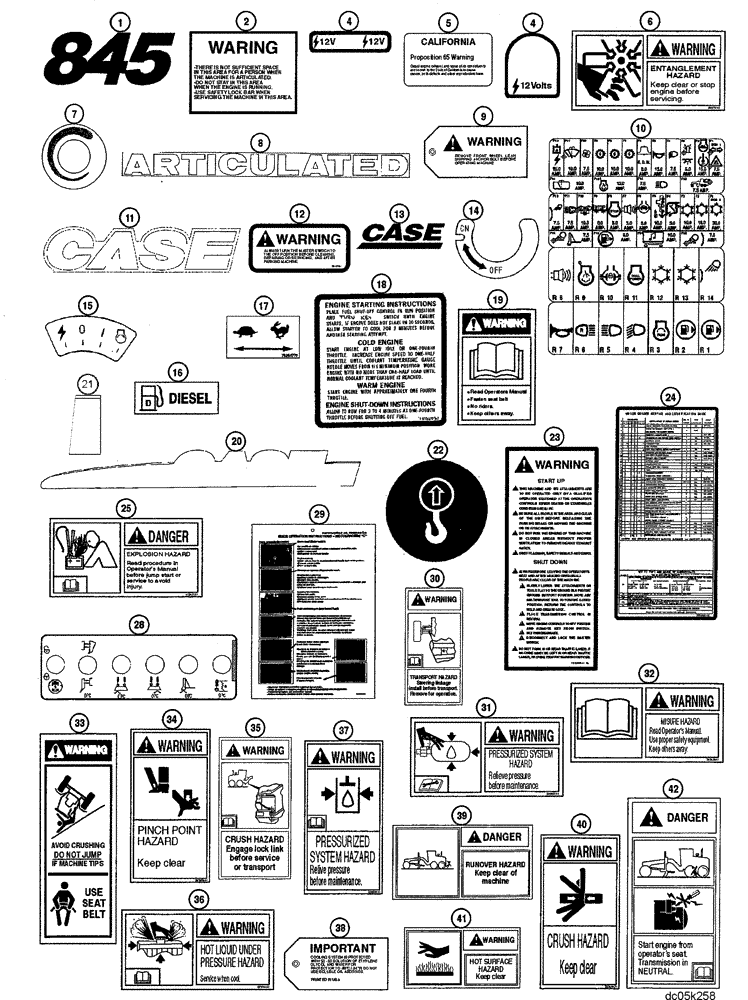

Запчасти Case 845 (09.46[00]) - DECALS (09) - CHASSIS

1

75320220

DECAL

845

2шт.

2

75213512

DECAL

WARNING - PORT

2шт.

2

75239041

DECAL

DECAL WARNING - ENGINE

2шт.

2

75237767

DECAL

WARNING - SPAN.

2шт.

3

75253501

DECAL

STRIPE WARNING 12V

5шт.

4

75253332

DECAL

WARNING 12V

1шт.

5

76036500

DECAL

EMISSIONS - ENGINE

1шт.

6

334035A1

DECAL

FAN WARNING - PORT.

1шт.

6

332512A1

DECAL

FAN WARNING - ENGINE

1шт.

6

334034A1

WARNING DECAL

Fan, Spanish

1шт.

7

75321640

DECAL

HEATER

1шт.

8

75238890

DECAL

ARTICULATED - PORT/SPAN.

2шт.

8

73152904

DECAL

ARTICULATED - ENGINE

2шт.

9

73120189

DECAL

FRONT AXLE LOCK - PORT.

1шт.

9

73108814

TAG

DECAL FRONT AXLE LOCK - ENGINE

1шт.

9

73120188

DECAL

FRONT AXLE LOCK - SPAN.

1шт.

10

75322187

DECAL

FUSE BOX

1шт.

11

75320235

EMBLEM

CASE LOGO

2шт.

12

79013499

DECAL

MASTER KEY - PORT.

1шт.

12

73107891

DECAL

ASTER KEY - ENGINE

1шт.

12

79013488

DECAL

MASTER KEY - SPAN.

1шт.

13

186989A1

EMBLEM

EMBLEM CASE

1шт.

14

79105247

DECAL

MASTER SWITCH ON - OFF

1шт.

15

75251205

DECAL

IGNITION SWITCH

1шт.

16

73163151

DECAL

FUEL

1шт.

17

75254779

DECAL

ACCELERATOR

1шт.

18

75238899

DECAL

ENGINE CONTROL - PORT

1шт.

18

73152851

DECAL

ENGINE CONTROL - ENGINE

1шт.

18

75239712

DECAL

ENGINE CONTROL - SPAN.

1шт.

19

334001A2

DECAL

OWNER'S MANUAL - PORT.

1шт.

19

382622A1

DECAL,60mm x 90mm H

OWNER'S MANUAL - ENGINE.

1шт.

19

334000A2

DECAL

OWNER'S MANUAL - SPAN.

1шт.

20

75320377

DECAL

CASE STRIPE RH

1шт.

20

75320376

EMBLEM

CASE STRIPE RH

1шт.

20

75320378

DECAL

CASE STRIPE LH

1шт.

20

75320236

DECAL

CASE STRIPE LH

1шт.

21

75281803

DECAL

FUSES

1шт.

22

73163135

DECAL

LIFTING EYE

2шт.

23

75238930

DECAL

ENGINE START UP - PORT.

1шт.

23

73152838

DECAL

ENGINE START UP - ENGINE

1шт.

23

75239711

DECAL

ENGINE START UP - SPAN.

1шт.

24

75230342

WIPER ARM

DECAL MAINT. (GRAZIANO) - PORT.

1шт.

24

75320384

DECAL

MAINT. (GRAZIANO) - ENGINE

1шт.

24

75320354

DECAL

MAINT. (GRAZIANO) - SPAN.

1шт.

24

75320339

DECAL

MAINT. (CLARK) - PORT

1шт.

24

75320372

DECAL

MAINT. (CLARK) - ENGINE.

1шт.

24

75320360

DECAL

MAINT. (CLARK) - SPAN.

1шт.

25

412475A1

DECAL

FLAMMABLE - PORT

1шт.

25

412471A1

DECAL

FLAMMABLE - ENGINE.

1шт.

25

412472A1

DECAL

FLAMMABLE - SPAN.

1шт.

26

73120479

DECAL

COLD START - PORT

1шт.

26

74029499

DECAL

COLD START - ENGINE

1шт.

26

73120478

DECAL

COLD START - SPAN

1шт.

27

75322291

DECAL

SCISSORS POINT - PORT

2шт.

27

75259265

DECAL

SCISSORS POINT - ENGINE

2шт.

27

75322292

DECAL

SCISSORS POINT - SPAN

2шт.

28

75322188

DECAL

SWITCHES

1шт.

29

75255784

DECAL

TAG OPERATION INSTRUCTIONS

1шт.

30

75259380

DECAL

WHEEL LEAN LOCK - PORT.

2шт.

30

75259378

DECAL

WHEEL LEAN LOCK - ING.

2шт.

30

75259381

DECAL

WHEEL LEAN LOCK - ESP.

2шт.

31

334016A1

DECAL

HYDR.ACCUMULATOR - PORT

3шт.

31

328904A1

DECAL

HYDR.ACCUMULATOR - ING

3шт.

31

334015A1

DECAL

HYDR.ACCUMULATOR - ESP

3шт.

32

391150A1

DECAL

MISUSE HAZARD - PORT.

1шт.

32

393538A1

DECAL

MISUSE HAZARD - ING

1шт.

32

391149A1

DECAL

MISUSE HAZARD - ESP.

1шт.

33

124273A1

DECAL

DO NOT JUMPNO SALTE - PORT.

1шт.

33

321-7030

WARNING DECAL

Do Not Jump - Eng

1шт.

33

124271A1

DECAL

DO NOT JUMPNO SALTE - ESP.

1шт.

34

391267A1

DECAL

PINCH POINT - PORT.

10шт.

34

283609A1

DECAL

PINCH POINT - ING.

10шт.

34

391266A1

DECAL

PINCH POINT - ESP.

10шт.

35

75259382

DECAL

FRAME LOCK - PORT.

1шт.

35

75259377

DECAL

FRAME LOCK - ING.

1шт.

35

75259387

DECAL

FRAME LOCK - ESP.

1шт.

36

334665A1

WARNING DECAL

Pressurized Fluid - Port

1шт.

36

329044A1

WARNING DECAL,168mm x 88mm H

Pressurized Fluid - Eng

1шт.

36

334664A1

DECAL

PRESSURIZED FLUID - ESP.

1шт.

37

336009A1

DECAL

PRESSURIZED SYSTEM - PORT.

1шт.

37

335889A1

DECAL

PRESSURIZED SYSTEM - ING.

1шт.

37

336011A1

DECAL

PRESSURIZED SYSTEM - ESP.

1шт.

38

73109097

TAG

TAG COOLING SYSTEM

1шт.

39

75259383

DECAL

RUNOVER HAZARD - PORT.

2шт.

39

75259367

DECAL

RUNOVER HAZARD - ING.

2шт.

39

75259391

DECAL

RUNOVER HAZARD - ESP.

2шт.

40

334575A1

DECAL

CRUSH HAZARD - PORT.

2шт.

40

323694A1

DECAL

CRUSH HAZARD - ING.

2шт.

40

334576A1

DECAL

CRUSH HAZARD - ESP.

2шт.

41

75259385

DECAL

HOT SURFACE - PORT.

2шт.

41

75259376

DECAL

HOT SURFACE - ING.

2шт.

41

75259392

DECAL

HOT SURFACE - ESP.

2шт.

42

75259384

DECAL

DANGER STARTING - PORT.

1шт.

42

75259368

DECAL

DANGER STARTING - ING.

1шт.

42

75259393

DECAL

DANGER STARTING - ESP.

1шт.

43

73116394

ANTI-SKID STRIP

ANTI - SKID

6шт.

43

75322353

WEAR STRIP

ANTI - SKID

2шт.
