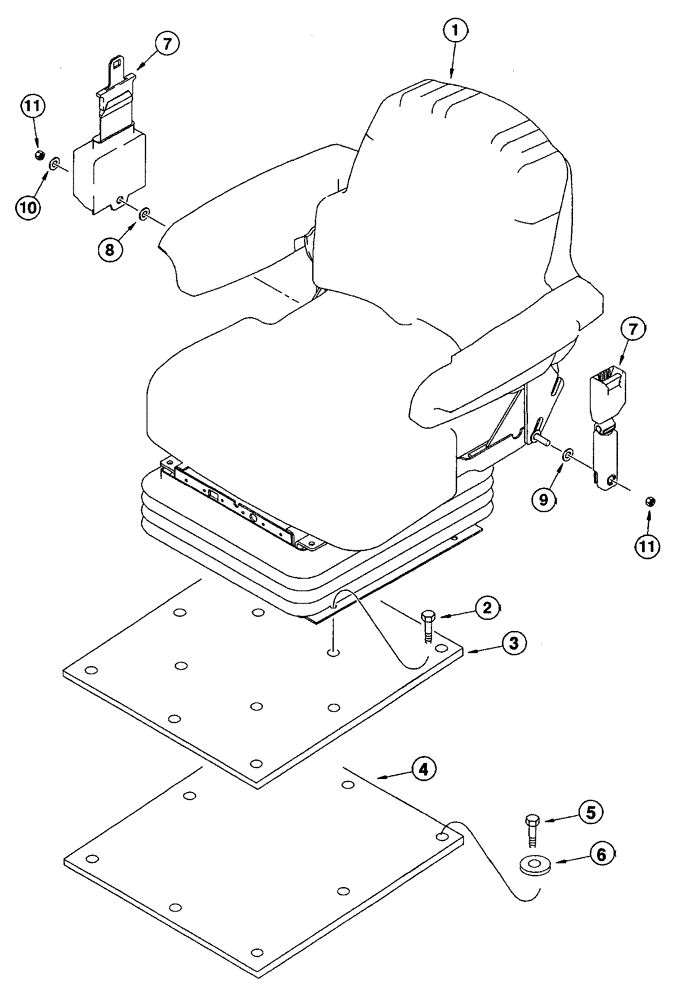

Запчасти Case 845 (09.42[00]) - SEAT - MOUNTING (09) - CHASSIS

1

399261A1

DRIVER SEAT

1шт.

1

399257A1

DRIVER SEAT

1шт.

2

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

3

75257663

PLATE

1шт.

4

75281142

PLATE

1шт.

5

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

8шт.

6

12642021

WASHER

8шт.

BELT SAFETY 51MM (2in)

1шт.

7

249116A1

SAFETY BELT ,50.80 mm W

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

495-11047

WASHER,7/16", SAE

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.

BELT SAFTY 76MM (3in)

1шт.

7

249117A1

SAFETY BELT ,76.20 mm W

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

495-11047

WASHER,7/16", SAE

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.
