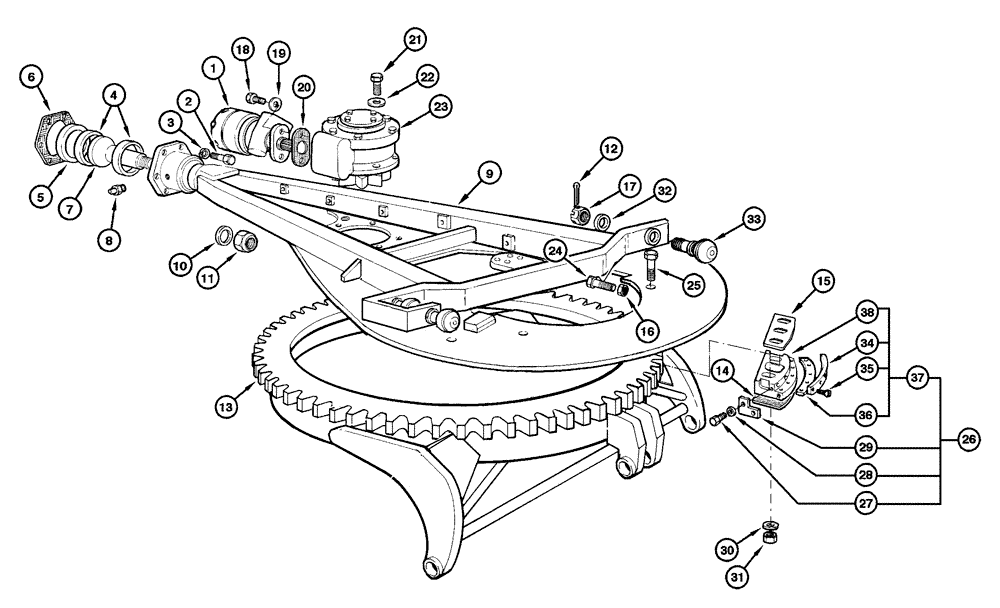

Запчасти Case 845 (09.07[00]) - CIRCLE - ASSEMBLY (09) - CHASSIS

1

75258929

HYDRAULIC MOTOR

1шт.

1

87389984R

REMAN-HYD MOTOR

845 MOTOR GRADER - ASN 020001, Reman for New PN 75258929

1шт.

1

87389984C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

15835231

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

8шт.

3

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

8шт.

4

73130017

BUSHING,120.1mm ID x 152.32mm OD x 33.53mm L

2шт.

5

73125534

SPACER,127mm ID x 151.64mm OD x 36.83mm L

1шт.

6

70673457

SHIM

20шт.

7

73125531

DRAWBAR

1шт.

8

70912497

HYD CONNECTOR

1шт.

9

75257077

DRAWBAR

(NOTE 1)

1шт.

9

75322240

HITCH

BAR

1шт.

10

70927662

WASHER,1.81" ID x 2.75" OD x 0.38" Thk

1шт.

11

70921374

NUT

1шт.

12

70900808

COTTER PIN,1/8" x 1 1/2"

3шт.

13

75250100

CIRCLE-CUTTER BLOCK

(NOTE 1)

1шт.

13

75322338

KIT

FRAME (NOTE 2)

1шт.

14

73125482

PLATE

4шт.

15

73125483

SHIM,111.3mm OD x 0.78mm Thk

40шт.

16

70901421

NUT

8шт.

17

70911174

NUT

3шт.

17

75326480

NUT

FOR CHASIS N5AF03043 AND UP

3шт.

18

70922508

SCREW

3шт.

19

70928460

WASHER

2шт.

20

70651322

GASKET,0.76mm Thk

1шт.

21

15984131

BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd

6шт.

22

70927382

WASHER

6шт.

23

75258911

GEAR

Turn Circle Reducer, Replaces 75250861 See Figure 08.19

1шт.

24

73125522

BOLT,Hex, 7/8" - 9 x 3-1/2"

8шт.

25

70929092

SCREW

8шт.

26

75248940

GUIDE

4шт.

27

16323531

SCREW,M10 x 1.25 x 30mm

16шт.

28

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

16шт.

29

75248934

PLATE

8шт.

30

70929704

WASHER

8шт.

31

70053994

NUT

6шт.

32

70900822

WASHER

3шт.

32

75326490

WASHER,26.9mm ID x 63.5mm OD x 4.2mm Thk

WASHER FOR CHASIS N5AF03043 AND UP

3шт.

33

73125403

BALL

3шт.

33

75326511

BALL STUD,1" - 14

FOR CHASIS N5AF03043 AND UP

3шт.

34

73125481

WEAR STRIP

4шт.

35

73126330

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

40шт.

36

73125480

SUPPORT

4шт.

37

75248931

GUIDE

4шт.

38

75267162

GUIDE

4шт.
