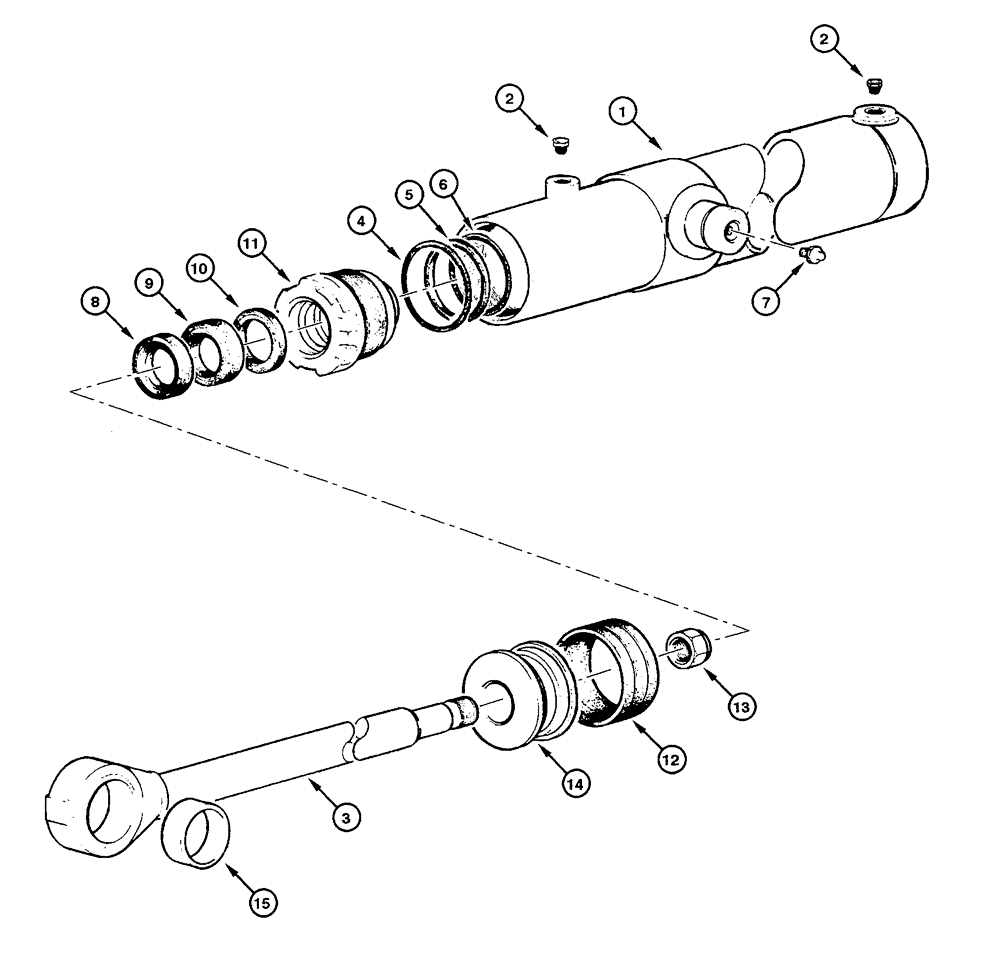

Запчасти Case 845 (08.61[00]) - CYLINDER - RIPPER (08) - HYDRAULICS

75251696

CYLINDER

ripper

1шт.

75267105R

REMAN-HYD CYLINDER

845 MOTOR GRADER ASN 020001, Reman for New PN 75251696

1шт.

75267105C

CORE-HYD CYLINDER

Return Number

1шт.

1

75251700

LINER, ENGINE CYLIND

liner

1шт.

2

76022111

OILER FABRIC

2шт.

3

75251697

ROD,50mm OD x 847mm L

1шт.

4

14466080

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

5

79021911

RING,94mm ID x 100mm OD x 6mm Thk

1шт.

6

14465880

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

7

70914465

LUBE NIPPLE

1шт.

8

8288832

O-RING

1шт.

9

8297073

BRAKE LINING

1шт.

10

8297074

RING

1шт.

11

75251699

BASE PLATE

1шт.

12

8291552

SEAL,75mm ID x 98.05mm OD x 22.4mm Thk

1шт.

13

8298615

NUT

1шт.

14

75251703

PISTON,98.05mm Bore, 35mm Rod, 47mm W

1шт.

15

8286948

BUSHING,60.2mm ID x 72mm OD x 65mm L

2шт.

16

75288903

SEAL

repair (NOTE)

1шт.
