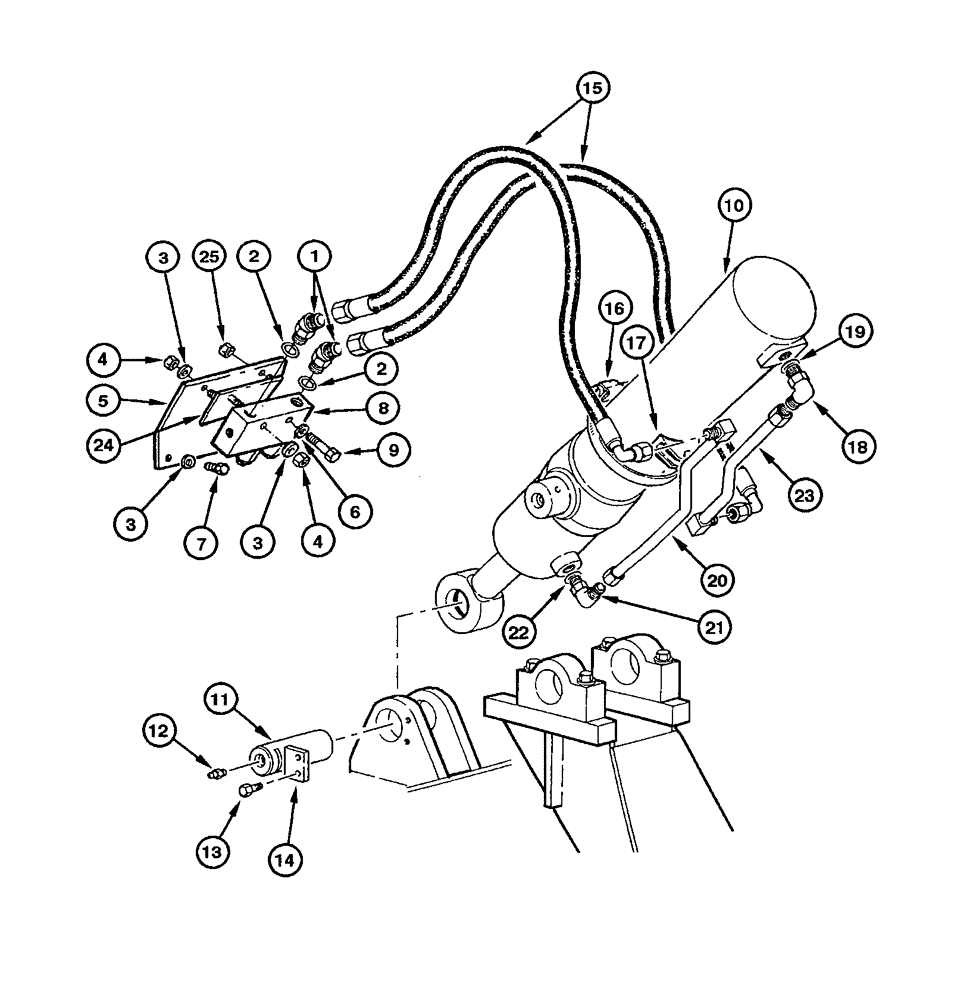

Запчасти Case 845 (08.29[00]) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

70922507

ELBOW

2шт.

2

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

4

16100821

NUT,M8, Cl 10

4шт.

5

75252422

PLATE

1шт.

6

70630753

WASHER

4шт.

7

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

8

73130105

HYDRAULIC VALVE

1шт.

9

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

10

75251696

CYLINDER

(pg.8 - 61)

1шт.

10

75267105R

REMAN-HYD CYLINDER

845 MOTOR GRADER ASN 020001, Reman for New PN 75251696

1шт.

10

75267105C

CORE-HYD CYLINDER

Return Number

1шт.

11

76002504

PIN,60mm OD x 170mm L

1шт.

12

13407211

LUBE NIPPLE,M10 x 1

1шт.

13

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

14

8270126

PLATE

1шт.

15

73127637

FLEXIBLE HOSE

2шт.

16

79083855

HOSE CLIP,145mm - 180mm, Worm Gear

1шт.

17

83901828

SPACER,R8.4mm, R45mm

2шт.

18

70921402

ELBOW

1шт.

19

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

75252626

RIGID TUBE

1шт.

21

70930804

ELBOW

1шт.

22

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

75252624

RIGID TUBE

1шт.

24

75320118

SUPPORT ASSY.

1шт.

25

11701721

NUT,M10, Cl 10

2шт.
