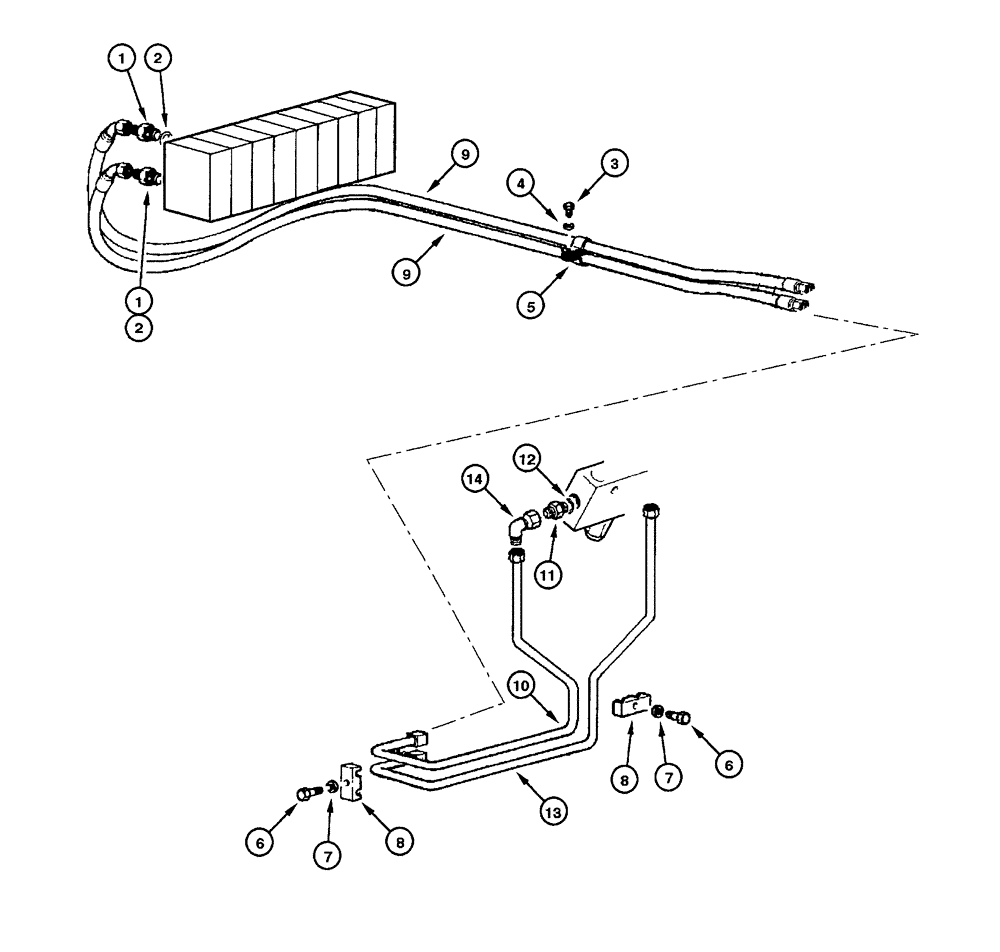

Запчасти Case 845 (08.28[00]) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

70922457

HYD CONNECTOR

2шт.

2

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

70927400

BOLT

1шт.

4

70915815

WASHER

1шт.

5

70929872

CLAMP

1шт.

6

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

7

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

2шт.

8

70623355

COLLAR

2шт.

9

75253148

FLEXIBLE HOSE

2шт.

10

75257120

RIGID TUBE

1шт.

11

70921409

HYD CONNECTOR

1шт.

12

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

75257122

RIGID TUBE

1шт.

14

70921279

ELBOW

2шт.
