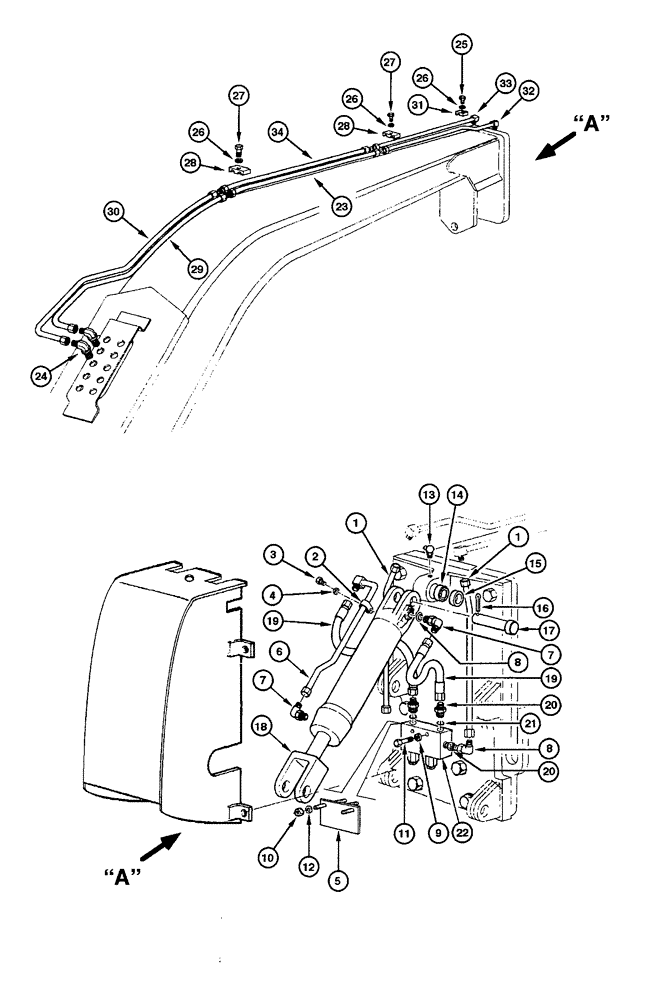

Запчасти Case 845 (08.24[00]) - SCARIFIER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

75320120

RIGID TUBE

2шт.

2

70929458

CLAMP

1шт.

3

16042931

BOLT,Hex, M8 x 1.25 x 10mm, Cl 10.9, Full Thd

1шт.

4

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

5

75320118

SUPPORT ASSY.

(pg.8 - 47)

1шт.

6

75252454

RIGID TUBE

1шт.

7

70921402

ELBOW

4шт.

8

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

11701721

NUT,M10, Cl 10

2шт.

10

16100821

NUT,M8, Cl 10

4шт.

11

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

12

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

13

70915276

LUBE NIPPLE

1шт.

14

70928851

BEARING ASSY

1шт.

15

70689717

SPACER,39.62mm ID x 50.8mm OD x 11.94mm L

1шт.

16

70911279

COTTER PIN

1шт.

17

70689718

PIN,38.07mm OD x 125.73mm L

1шт.

18

73067421

CYLINDER,Double Acting, 50.8mm Rod, 311.15mm Stroke

(pg.8 -62)

1шт.

18

73067421R

REMAN-HYD CYLINDER

845 MOTOR GRADER ASN 020001

1шт.

18

73067421C

CORE-HYD CYLINDER

Return Number

1шт.

19

75251172

FLEXIBLE HOSE

2шт.

20

70921409

HYD CONNECTOR

2шт.

21

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

73130105

HYDRAULIC VALVE

(pg.8 - 47)

1шт.

23

75248886

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 2301 mm Length

1шт.

24

70927163

HYD CONNECTOR

2шт.

25

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

26

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

4шт.

27

70921076

SCREW,3/8"-16 x 1 1/4"

2шт.

28

70623355

COLLAR

2шт.

29

75253438

RIGID TUBE

1шт.

30

75253437

RIGID TUBE

1шт.

31

73127629

CLAMP

2шт.

32

75253733

RIGID TUBE

1шт.

33

75253734

TUBE,9.7 mm ID, 12.7 mm OD, 805, 99 mm Length

1шт.

34

75248890

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 2316 mm Length

1шт.
