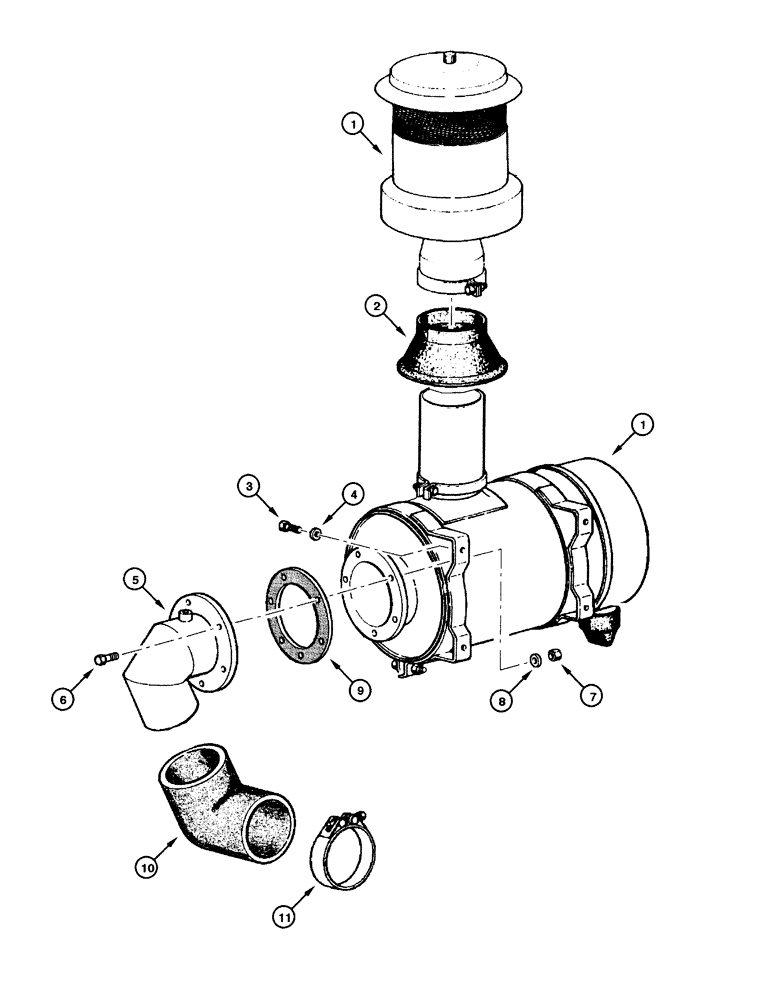

Запчасти Case 845 (02.04[00]) - AIR CLEANER - MOUNTING (02) - ENGINE

1

149931A1

FILTER ASSY

(PG.02.05)

1шт.

2

79016397

GUARD

1шт.

3

11112331

BOLT,Hex, M12 x 28mm, Cl 10.9, Full Thd

4шт.

4

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

5

75250837

ELBOW

1шт.

6

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

7

15500121

NUT

6шт.

8

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

6шт.

9

70658759

GASKET,2.39mm Thk

1шт.

10

73163934

HOSE

1шт.

11

70925263

CLAMP

2шт.
