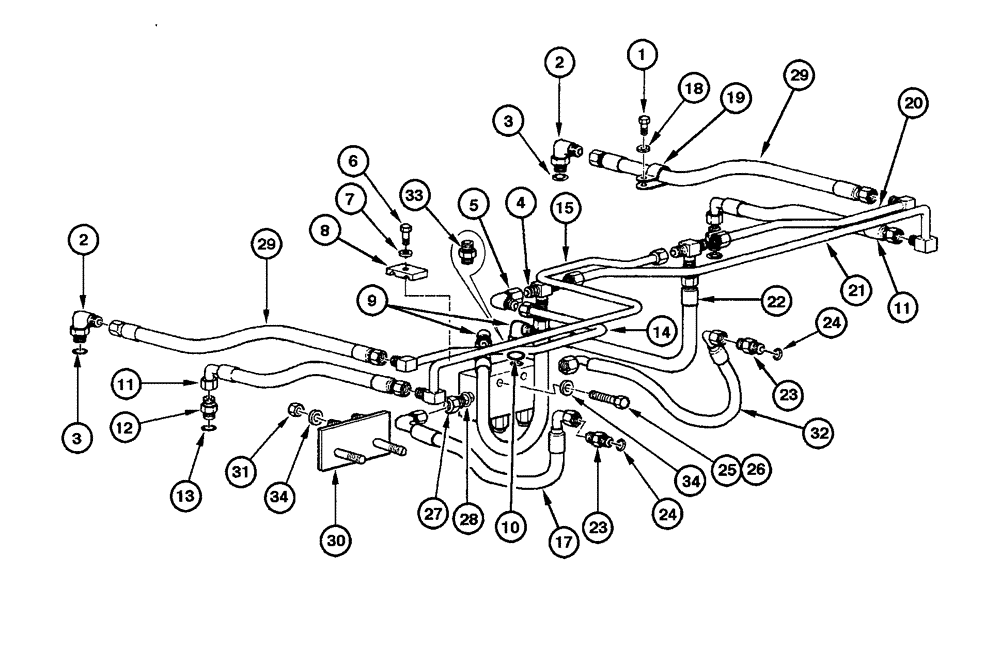

Запчасти Case 845 (08.23[00]) - LINK HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

70927541

SCREW

1шт.

2

70923905

ELBOW

2шт.

3

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

70928808

3 WAY CONNECTION

2шт.

5

70921279

ELBOW

1шт.

6

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

7

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

8

70623355

COLLAR

2шт.

9

70921402

ELBOW

1шт.

10

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

75251195

FLEXIBLE HOSE

2шт.

12

70922457

HYD CONNECTOR

2шт.

13

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

75248980

RIGID TUBE

1шт.

15

75248981

RIGID TUBE

1шт.

16

73130105

HYDRAULIC VALVE

(pg.8 - 47)

1шт.

17

75320494

FLEXIBLE HOSE

1шт.

18

70677004

WASHER,7.14mm ID x 15.88mm OD x 3.42mm Thk

1шт.

19

70929344

CLAMP

1шт.

20

75248982

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 304, 169 mm Length

1шт.

21

75248979

RIGID TUBE

1шт.

22

75251155

FLEXIBLE HOSE

2шт.

23

70922522

HYD CONNECTOR

2шт.

24

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

26

11701721

NUT,M10, Cl 10

2шт.

27

70922457

HYD CONNECTOR

2шт.

28

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

75251195

FLEXIBLE HOSE

2шт.

30

75320479

PLATE

1шт.

31

16100821

NUT,M8, Cl 10

4шт.

32

75251173

FLEXIBLE HOSE

1шт.

33

70921409

HYD CONNECTOR

2шт.

34

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.
