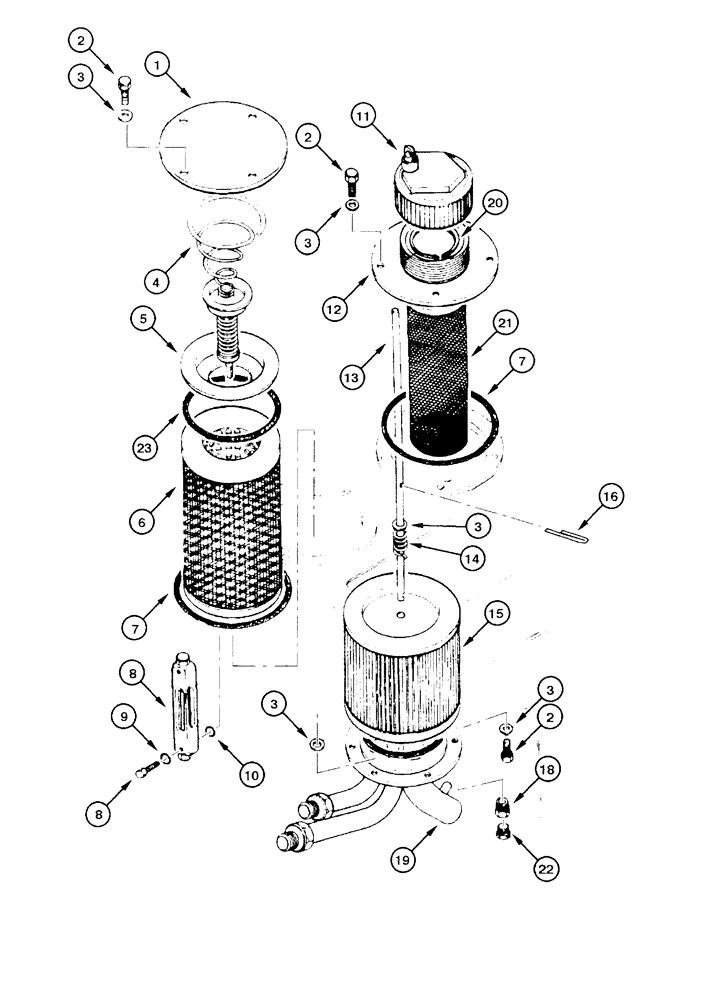

Запчасти Case 845 (08.01[00]) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

75250792

COVER

1шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

14шт.

3

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

16шт.

4

73045861

HYDRAULIC VALVE

1шт.

5

73053604

RETAINER CUP

1шт.

6

149937A1

HYDRAULIC OIL FILTER

1шт.

7

14467980

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

2шт.

8

70678984

LEVEL GAUGE

2шт.

9

70928497

O-RING,-014, Cl 7, .489" ID x .070" Thk

2шт.

10

70935117

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

2шт.

11

79104494

CAP

1шт.

12

73164032

NECK FILLER

1шт.

13

73164031

THREADED TIE-ROD

1шт.

14

73066048

SPRING

1шт.

15

149938A1

ELEMENT

1шт.

16

70900802

COTTER PIN,3/32" x 1"

2шт.

17

70923594

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

1шт.

18

70920416

PLUG

2шт.

19

75320047

TUBE ASSY.

1шт.

20

4971843

CIRCLIP

1шт.

21

149939A1

FILTER SCREEN

1шт.

22

70901828

BUSHING

1шт.

23

70924146

O-RING,0.21" Thk x 3.225" ID, -339, Cl 5, 75 Duro

1шт.
