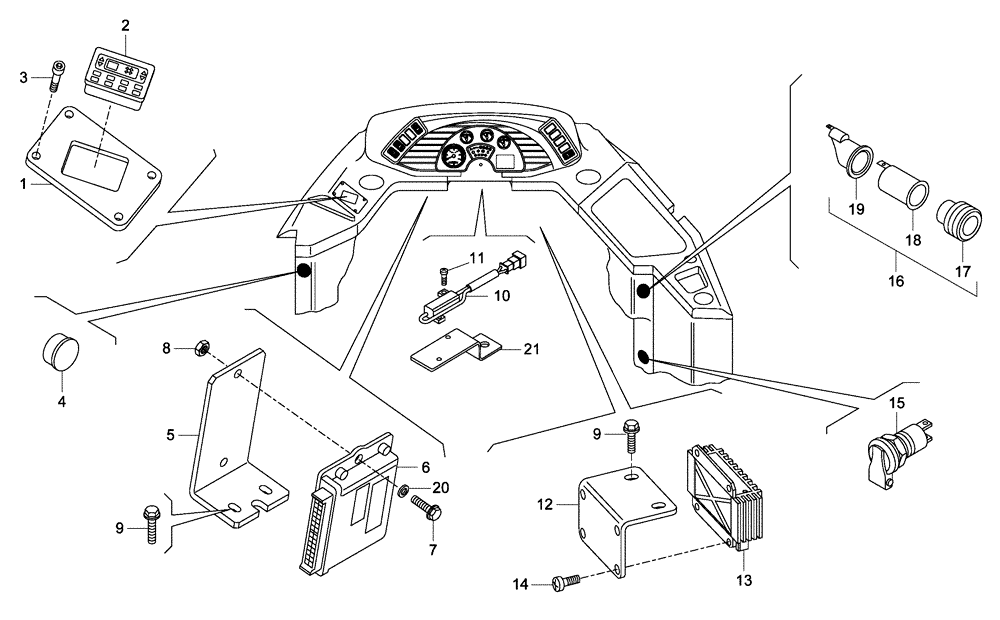

Запчасти Case 340 (67A00021455[001]) - ELECTRICAL ACCESSORIES - DRIVER CAB (87363281) (13) - Electrical System / Decals

1

89500409417

PLATE

1шт.

2

89500409698

CONTROL UNIT

Does Not Apply to North American Models

1шт.

3

8998199849

BOLT

M4 x 12

4шт.

4

89500405521

CAP

1шт.

5

89500409479

SUPPORT

1шт.

6

89500417922

CONTROL UNIT

1шт.

7

8900125036

BOLT,M6 x 30mm

M6 x 30; Replaces 8916585324 Bolt M5 x 20 Used On Some Models

2шт.

8

8900125009

NUT

M5

2шт.

9

8900115589

BOLT

M10 x 30

4шт.

10

89500409635

RESISTOR

1шт.

11

8900103410

SELF-TAP SCREW

ST 2.9 x 9.5

2шт.

12

89500409480

SUPPORT

1шт.

13

8941200568

TRANSFORMER

1шт.

14

8900142213

SCREW

Replaces 8900124628 Bolt M6 x 20 Used On Some Models

7шт.

15

8900140115

POWER SOCKET

1шт.

16

8904842512

CIGARETTE LIGHTER

ASSY-12V

1шт.

Include(s) 17, 18, 19

1шт.

17

8904842514

HEATING ELEMENT

1шт.

18

8904842794

SEAT/SLOT

1шт.

19

8904842515

RING NUT

1шт.

20

8900955275

LOCK WASHER

1шт.

21

89500414195

BRACKET

2шт.
