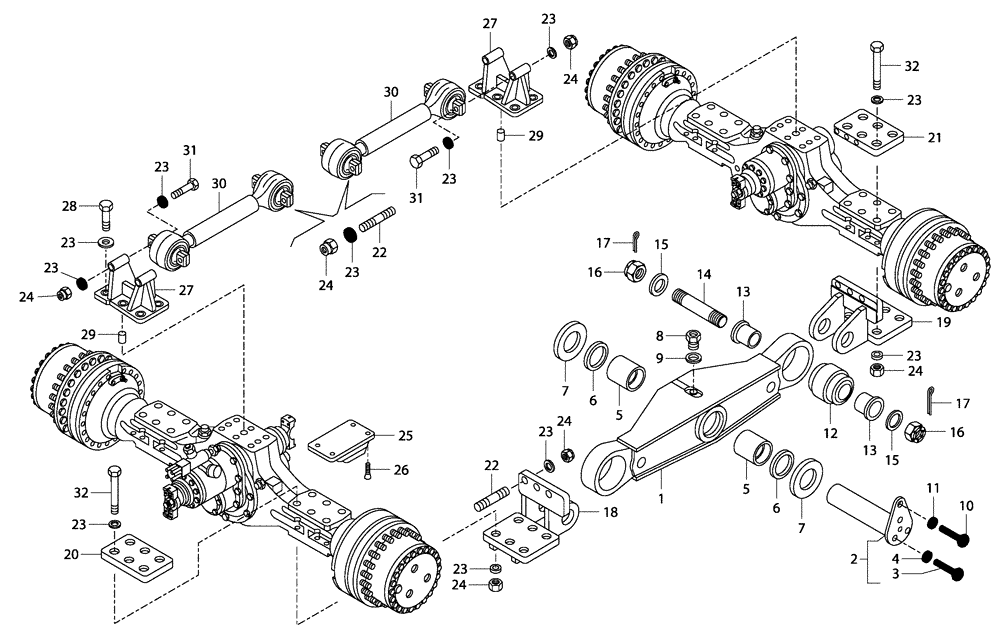

Запчасти Case 340 (39A00010627[001]) - REAR SUSPENSION - TIE RODS (87447860) (11) - AXLES/WHEELS

1

89500405630

ARM

2шт.

2

8900192213

PIN

ASSY

2шт.

Include(s) 3, 4, 10, 11

1шт.

3

8900177301

BOLT

M16 x 60

6шт.

4

8900110597

WASHER

6шт.

5

89500421000

BUSHING

Replaces 8900192228 Bushing

4шт.

REF

INSTRUCTION

Required For Field Modification Of Rear Suspension Per Astra Bulletin SI-ADT031/06

1шт.

6

8998197288

RING

4шт.

7

89500421101

WASHER

Replaces 8900192217 Washer, Scraper

4шт.

REF

INSTRUCTION

Required For Field Modification Of Rear Suspension Per Astra Bulletin SIADT031/06

1шт.

8

89500409013

ADAPTER

Replaces 8900194860 Plug Used On Some Models

2шт.

9

8900157037

COPPER SEAL

2шт.

10

8916637134

BOLT

M20 x 50

2шт.

11

8900140552

COLLAR

2шт.

12

89500418188

BUSHING,89mm ID x 214mm OD x 196.7mm L

Replaces 8998197289 Bushing

4шт.

13

89500406663

BUSHING

8шт.

14

89500406664

PIN

4шт.

15

89500406666

WASHER

8шт.

16

89500406665

NUT

8шт.

17

8916863701

PIN, SPLIT (COTTER)

PIN, COTTER 8X90

8шт.

18

89500406030

SUPPORT

2шт.

INTERM. LH - REAR RH

1шт.

19

89500406031

SUPPORT

2шт.

INTERM. RH - REAR LH

1шт.

20

89500405905

PLATE

2шт.

INTERM. LH - REAR RH

1шт.

21

89500405906

PLATE

2шт.

INTERM. RH - REAR LH

1шт.

22

89500402625

STUD

20шт.

23

8917093274

WASHER

84шт.

24

8917156531

NUT

M24 x 2

40шт.

25

89500424563

RUBBER BLOCK

Replaces 89500407852 Pad

4шт.

26

8900958408

SCREW

M10 x 1.5 x 20

16шт.

27

89500405735

SUPPORT

2шт.

28

8916620134

BOLT

M24 x 80

12шт.

29

89500402751

PLUG

4шт.

30

89500407500

TIE-ROD

2шт.

31

89500402619

BOLT,Hex, M24 x 2 x 210mm

4шт.

32

89500402620

BOLT,Hex, M24 x 2 x 330mm, Cl 10.9

24шт.
