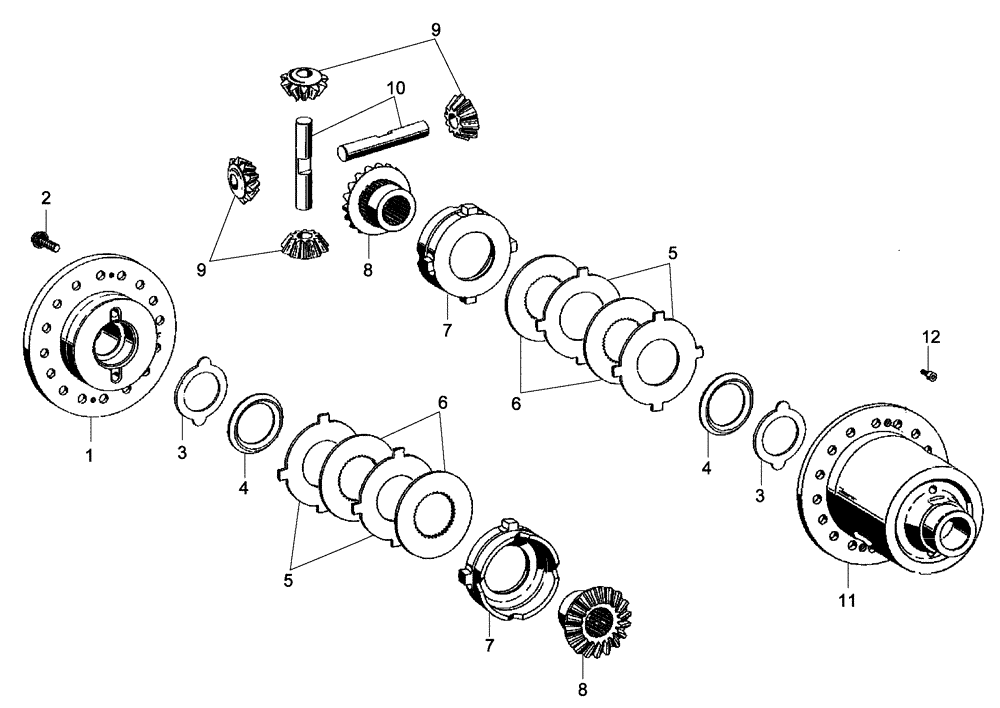

Запчасти Case 340 (32A00000651[001]) - INTERMEDIATE AXLE - DIFFERENTIAL BETWEEN THE WHEELS (11) - AXLES/WHEELS

1

242161A1

COVER

1шт.

2

184716A1

SCREW

20шт.

3

120017A1

THRUST WASHER

2шт.

4

120019A1

THRUST WASHER

2шт.

5

87454125

DISC

3.00 mm

4шт.

5

87454126

DISC

2.70 mm

4шт.

5

87454127

DISC

2.90 mm

4шт.

5

87454128

DISC,3.1mm Thk

3.10 mm

4шт.

5

87454129

DISC,3.2mm Thk

3.20 mm

4шт.

5

87454130

DISC

3.30 mm

4шт.

6

242159A1

CLUTCH PLATE

CLUTCH DISK

4шт.

7

243354A1

THRUST RING

2шт.

8

384508A1

GEAR

2шт.

9

120018A1

PINION

4шт.

10

120020A1

PIN

2шт.

11

243353A1

HOUSING

1шт.

12

193152A1

BOLT

M16 x 1

2шт.
