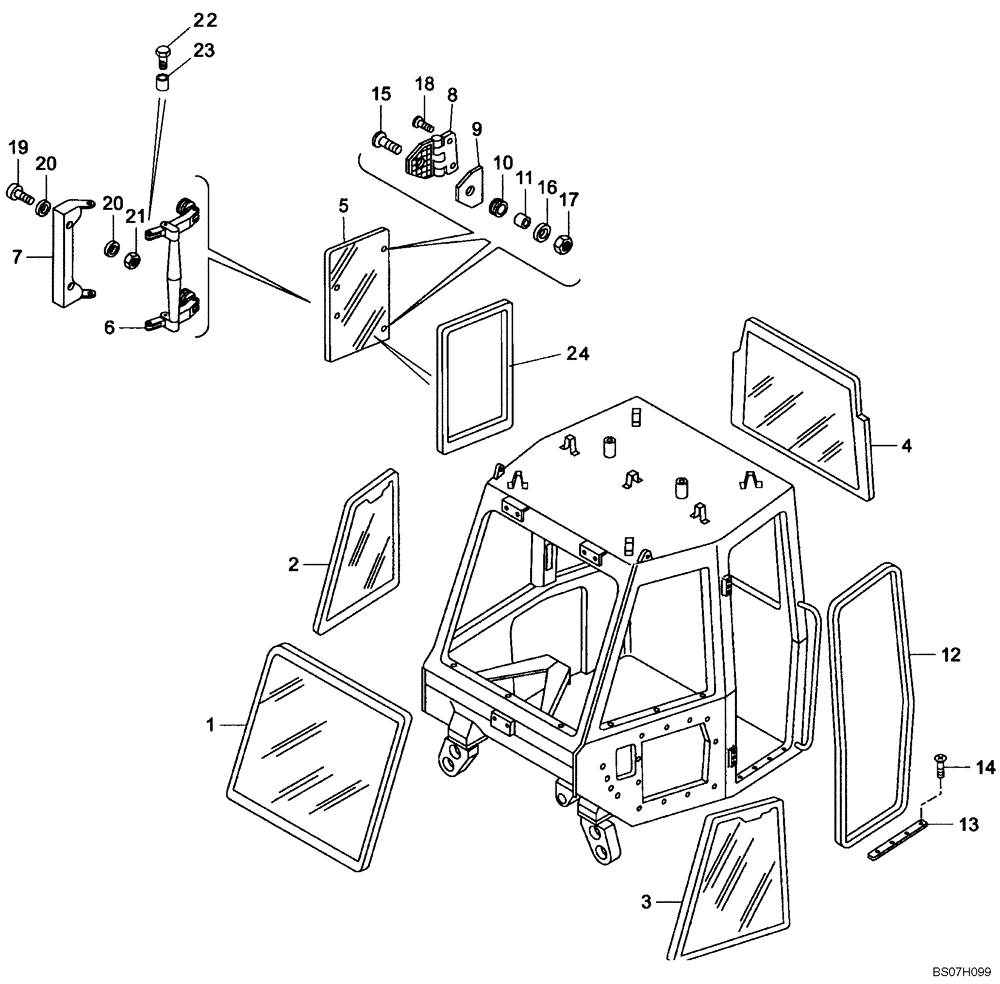

Запчасти Case 340 (51A00001282[001]) - DRIVER CAB - PLATE GLASSES (87365937) (10) - Cab/Cowlings

1

8900132851

WINDSHIELD

1шт.

2

8900132853

CAB GLASS

FRONT RIGHT

1шт.

3

8900132854

CAB GLASS

FRONT LEFT

1шт.

4

8900132852

CAB GLASS

REAR SIDE

1шт.

5

8900132855

CAB GLASS

REAR RIGHT SIDE

1шт.

6

8900132856

HANDLE

1шт.

7

8900132857

SUPPORT

1шт.

8

8960550014

HINGE

2шт.

9

8900132888

SHIM

2шт.

10

8900132919

RUBBER RING

2шт.

11

8900132858

SPACER

2шт.

12

8900126829

RUBBER STRIP

2шт.

13

8900132879

SHIM

1шт.

14

8917945604

SELF-TAP SCREW

3.9 x 20

4шт.

15

8900179409

BOLT,M8 x 25mm

M8 x 25; Replaces 8917344424 Screw

6шт.

16

8900141697

WASHER

8

2шт.

17

8917785811

LOCK NUT

M8

2шт.

18

8900180016

SCREW

M8 x 10; Replaces 8917344124 Screw

4шт.

19

8900142213

SCREW

M6 x 20

2шт.

20

8900140731

WASHER

Replaces 8900955493 Washer

2шт.

21

8917785711

LOCK NUT

M6

2шт.

22

8998340532

SCREW,M4 x 10mm

M4 x 10; If Used Replaces 8900154471 Screw Used On Some Models

2шт.

23

8998340533

THREADED INSERT

If Used

2шт.

24

8998340521

GASKET

If Used

1шт.

25

8998340841

REPAIR KIT

KIT, HANDLE; Incl 6, 7, 19, 20, 21

1шт.

26

8998340842

REPAIR KIT

KIT, HINGE REPLACEMENT; Incl 8, 9, 10, 11, 15, 16, 17, 18

2шт.
