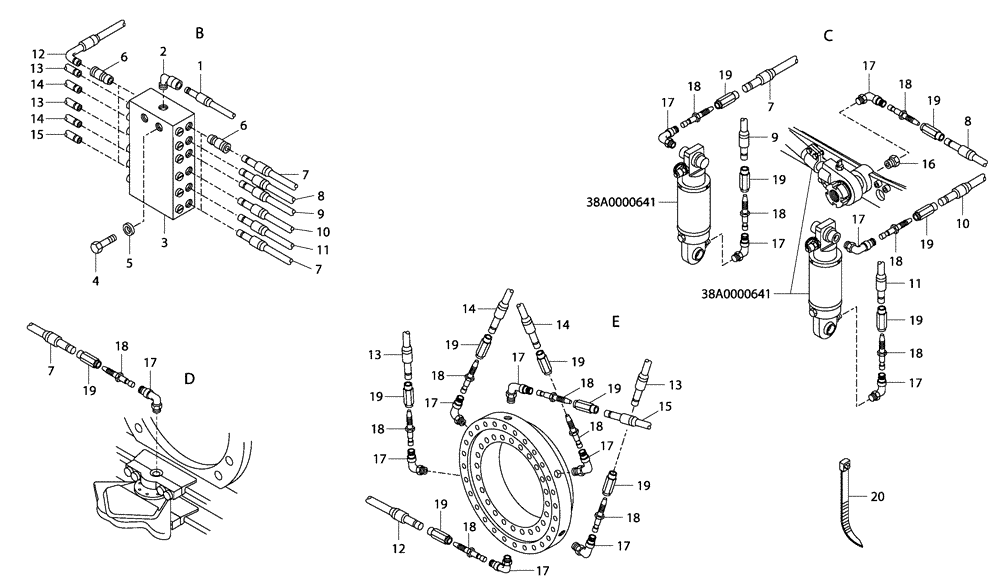

Запчасти Case 340 (94A01000519[001]) - AUTOMATIC GREASING SYSTEM - FRONT FRAME (09) - Implement / Hydraulics / Frame / Brakes

1

8900194011

HOSE

1шт.

See Figure(s) 94A00000519; Ref.12

1шт.

2

8900190690

HYD CONNECTOR

1шт.

3

8900190688

DISTRIBUTOR

1шт.

4

8900010369

BOLT

1шт.

5

8900955275

LOCK WASHER

M6 x 40

2шт.

6

8900190691

HYDRAULIC VALVE

2шт.

7

8900190770

FLEXIBLE HOSE

1900 mm

12шт.

8

8900190771

FLEXIBLE HOSE

2800 mm

2шт.

9

8900194014

FLEXIBLE HOSE

3500 mm

1шт.

10

89500400380

FLEXIBLE HOSE

1шт.

11

8900190769

FLEXIBLE HOSE

1500 mm

1шт.

12

8900190764

FLEXIBLE HOSE

2100 mm

1шт.

13

8900190761

FLEXIBLE HOSE

1700 mm

2шт.

14

8900190759

FLEXIBLE HOSE

1300 mm

2шт.

15

8900190758

FLEXIBLE HOSE

1шт.

16

89500409430

HYD CONNECTOR

1шт.

17

8900190692

HYD CONNECTOR

1шт.

18

8900190695

HYD CONNECTOR

12шт.

19

8900190694

BUSHING

12шт.

20

8900046313

COLLAR

1шт.
