(98A00000800[001]) - ACCESSORIES - SUSPENSION INFLATING EQUIPMENT (89500409614)

Запчасти Case 340 (98A00000800[001]) - ACCESSORIES - SUSPENSION INFLATING EQUIPMENT (89500409614) (90) - PLATFORM, CAB, BODYWORK AND DECALS

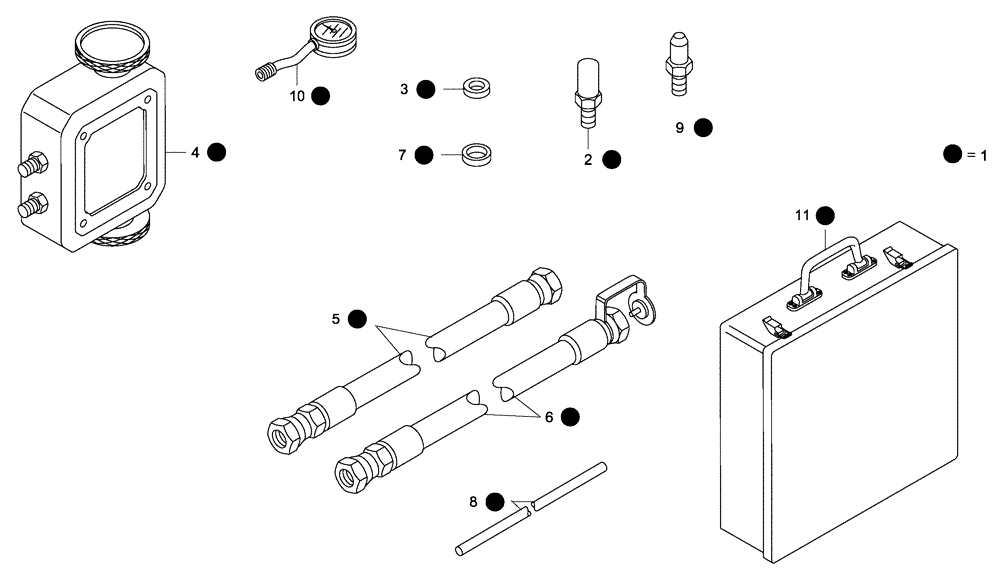

Схема запчастей Case 340 - (98A00000800[001]) - ACCESSORIES - SUSPENSION INFLATING EQUIPMENT (89500409614) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
1
5
1
2
8
1
6
1
11
14
1
1
1
1
1
1
3
7
1
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500409614

KIT

SUSPENSION INFLATION

1шт.

Include Ref. 2 To 11

1шт.

2

8900045480

HYD CONNECTOR

1шт.

3

8900045481

COPPER WASHER

RING, COPPER

4шт.

4

8900045492

PUMP

INFLATION

1шт.

5

8900045493

HOSE

1шт.

6

89500409616

HOSE

1шт.

7

8900002649

COPPER WASHER

RING, COPPER

4шт.

8

8900095165

HOSE

D.8X12

1шт.

9

8900045478

HYD CONNECTOR

1шт.

10

8998197698

PRESSURE GAUGE

1шт.

11

8900046231

TOOL BOX

1шт.

Выбрано товаров: 12
