(59B00000001[001]) - DUMPING HOODS VALVE (89500409562)

Запчасти Case 340 (59B00000001[001]) - DUMPING HOODS VALVE (89500409562) (90) - PLATFORM, CAB, BODYWORK AND DECALS

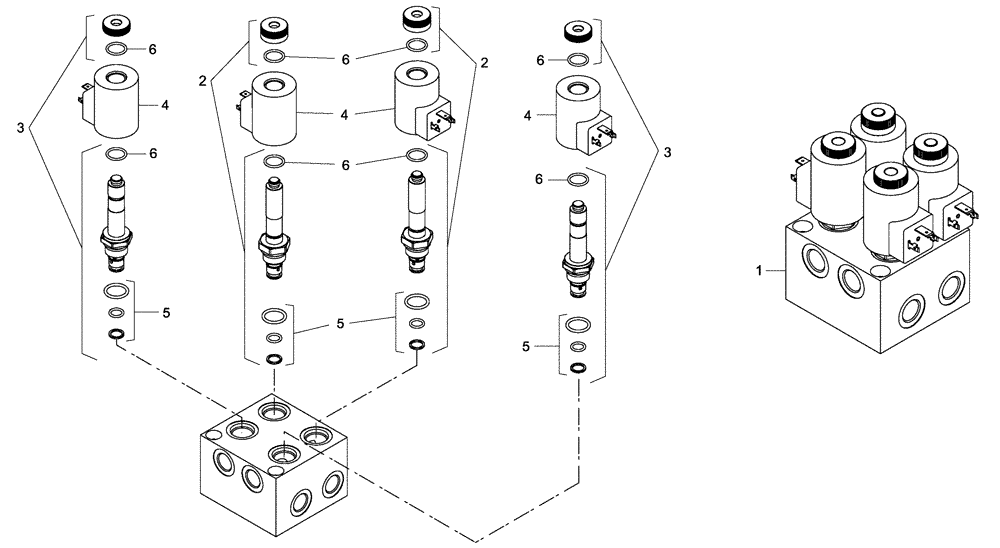

Схема запчастей Case 340 - (59B00000001[001]) - DUMPING HOODS VALVE (89500409562) (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
1
5
4
6
4
5
6
6
3
6
6
5
2
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500409562

VALVE

1шт.

Include Ref. 2 TO 6

1шт.

2

8900133388

REPAIR KIT

2шт.

3

8900133389

REPAIR KIT

2шт.

4

8900133173

COIL

BT 24V

4шт.

5

8900133390

SEALING RING

4шт.

6

8900133387

SEALING RING

8шт.

Выбрано товаров: 7
