(51A00001258[001]) - DRIVER CAB - SEAT

Запчасти Case 340 (51A00001258[001]) - DRIVER CAB - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

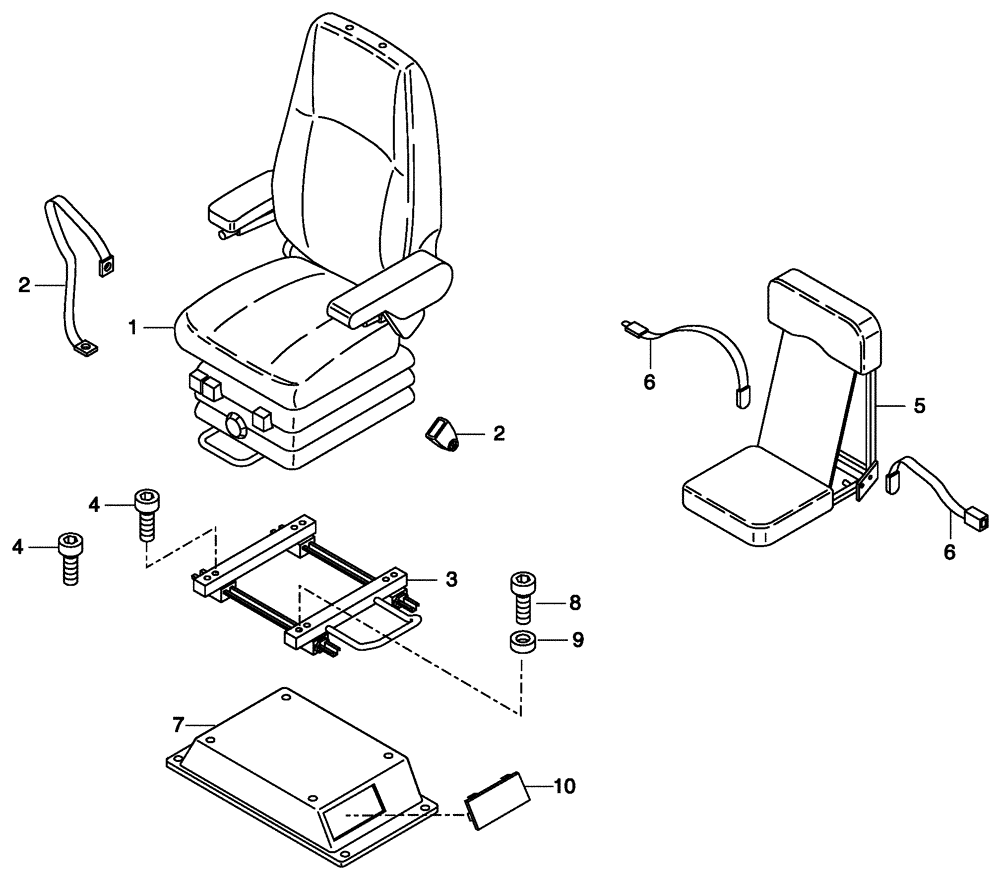

Схема запчастей Case 340 - (51A00001258[001]) - DRIVER CAB - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
1
2
6
4
9
10
6
3
5
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900195165

DRIVER SEAT

PNEUMATIC SEE PAGE 51B00000026

1шт.

2

8900195261

SAFETY BELT

2"

1шт.

3

8900194931

SUPPORT

1шт.

4

8900006309

BOLT,M8 x 20mm

M8 x 20

6шт.

5

8960560008

INSTRUCTIONAL SEAT

AUXILIARY

1шт.

6

8960560013

SEAT BELT

1шт.

7

8900127242

SUPPORT

1шт.

8

8900111198

BOLT

2шт.

9

8900176824

BUSHING

4шт.

10

8900118220

LABEL

1шт.
