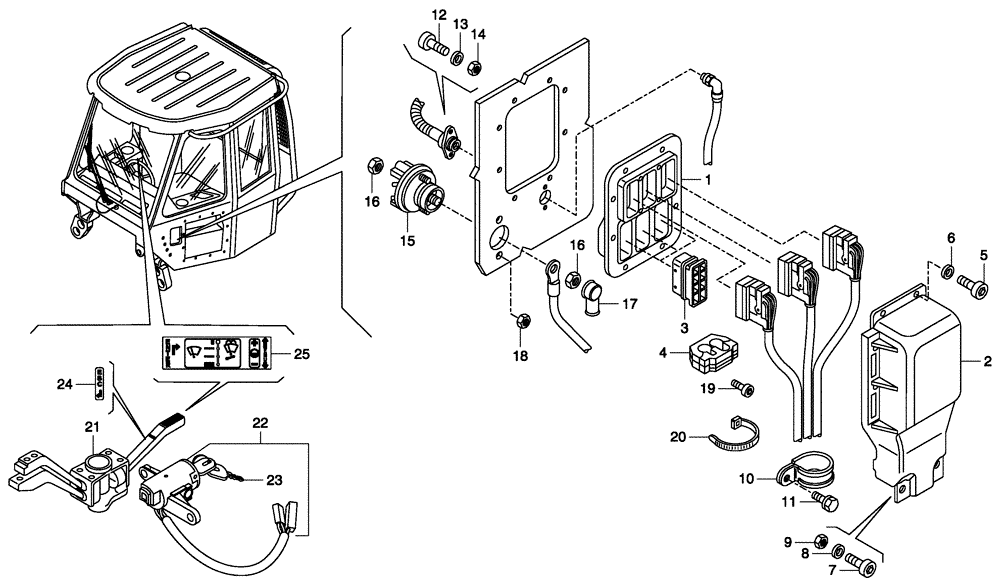

Запчасти Case 340 (67A00001454[001]) - VARIOUS ELECTRICAL EQUIPMENTS (55) - ELECTRICAL SYSTEMS

1

89500362342

PLATE

1шт.

2

89500363406

COVER

1шт.

3

89500373567

PLUG

3шт.

4

89504077459

BRACKET

1шт.

5

8900109848

BOLT,M6 x 30mm

M6X30

8шт.

6

8900955275

LOCK WASHER

6

8шт.

7

8900108856

BOLT

M6X50

2шт.

8

8900002738

WASHER

5X10

2шт.

9

8900125010

FLANGE NUT

M5

2шт.

10

8900163658

COLLAR

1шт.

11

8900115555

BOLT,M8 x 30mm

M8X30

1шт.

12

8900125013

SCREW,M3 x 16mm

4шт.

13

8900127601

LOCK WASHER

3

4шт.

14

8900009278

NUT

M3

4шт.

15

8900124540

POWER SOCKET

1шт.

16

8900115122

NUT

M8

2шт.

17

8900142325

PROTECTION CAP

1шт.

18

8900125009

NUT

M6

2шт.

19

8916585324

BOLT,M5 x 20mm

M5X20

2шт.

20

8900184223

HOSE CLAMP

1шт.

21

8900124528

SWITCH

Combination; Incl. NSS Wire Leads for Horn Button, Wiper Switch, High Beam Light Switch, and Cluster Scrolling Controls

1шт.

22

8998491189

SWITCH

WITH KEYS

1шт.

Include Ref. 23

1шт.

23

8900120120

IGNITION KEY

1шт.

24

89500409054

LABEL

"ESC"

1шт.

25

89500409055

LABEL

"ENTER MENU"

1шт.
