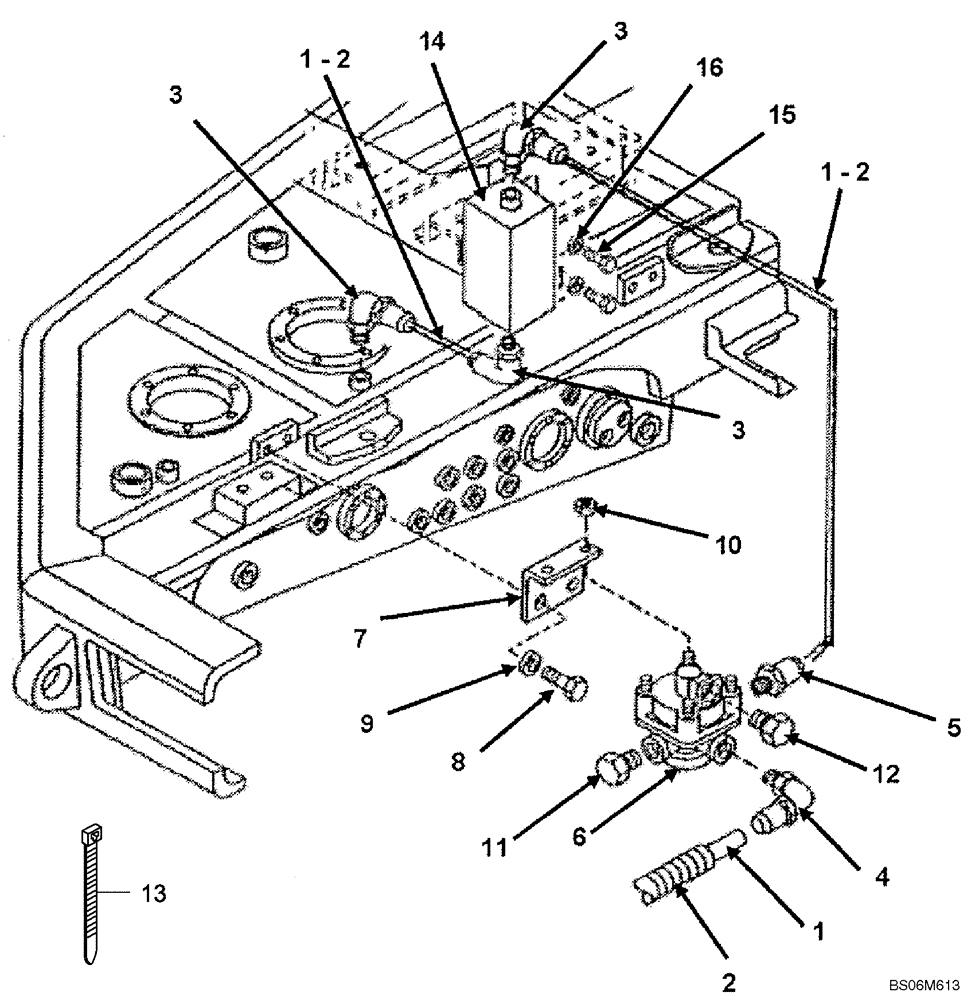

Запчасти Case 340 (49A04000898[001]) - PNEUMATIC SYSTEM - FRONT FRAME (87315756) (36) - PNEUMATIC SYSTEM

REF

INSTRUCTION

Note that there should be a circled letter "N" on this artwork page. It applies to the following note: Artwork bubbles with letters inside of them on this artwork page refer back to artwork page 49A00010898(001) that shows the general machine location f

1шт.

1

8900095213

PLASTIC-RUBBER TUBE

D.9 x 12

1шт.

2

8900095201

TUBE

D.12.7 x 15.8

1шт.

3

8900117283

HYD CONNECTOR

QTY Was 1

1-3шт.

4

8900117284

HYD CONNECTOR

1шт.

5

8900117246

HYD CONNECTOR

1шт.

6

89500408455

VALVE

1шт.

7

89500401257

SUPPORT

1шт.

8

8900140738

BOLT

2шт.

9

8900956220

LOCK WASHER

M8 x 20

2шт.

10

8900115122

NUT

8

2шт.

11

8900040169

PLUG

M8

1шт.

12

8900045515

PLUG

1шт.

13

8900150511

COLLAR

1шт.

14

89500418735

SEPARATOR

Replaces 89500418734 Separator

1шт.

15

8900115589

BOLT

If Used

2шт.

16

8916984335

NUT

Replaces 8916750331 Nut

2шт.
