Запчасти Case 340 (49A00010901[001]) - PNEUMATIC SYSTEM - REAR FRAME (36) - PNEUMATIC SYSTEM

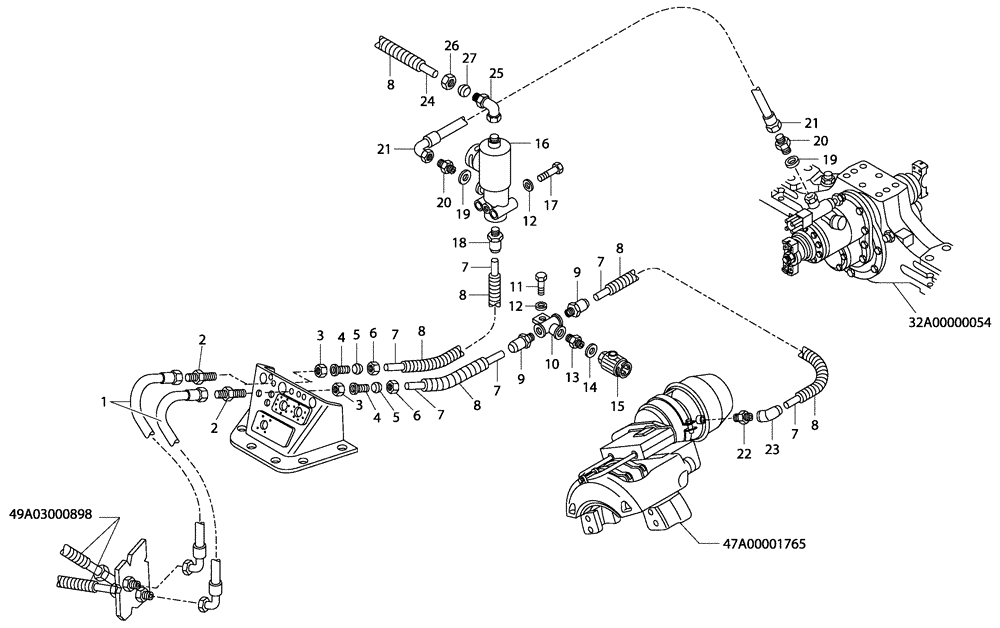

Схема запчастей Case 340 - (49A00010901[001]) - PNEUMATIC SYSTEM - REAR FRAME (36) - PNEUMATIC SYSTEM
8
22
21
8
19
3
20
2
1
21
12
8
9
3
11
10
20
23
17
4
19
14
7
12
27
8
7
26
7
6
18
7
7
5
8
16
8
13
25
15
4
6
5
2
7
9
24

Артикул

Название

Примечание

Количество

1

89500407721

HOSE

2шт.

2

8916502314

HYD CONNECTOR

2шт.

3

8900141319

NUT

M14 x 1.5

2шт.

4

8900141326

BUSHING

8 x 1

2шт.

5

8900141325

RING

8

2шт.

6

8916506715

NUT

8

2шт.

7

8900095211

HOSE

D.6 x 8

1шт.

8

8900095153

FLEXIBLE SHEATH

D.8.4 x 11.7

1шт.

9

8900117244

HYD CONNECTOR

2шт.

10

8900117278

HYD CONNECTOR

1шт.

11

8900140738

BOLT

M8 x 20

1шт.

12

8900956220

LOCK WASHER

8

3шт.

13

8916500715

HYD CONNECTOR

1шт.

14

8900005683

COPPER WASHER

16 x 20

1шт.

15

8900171585

SWITCH

Parking Brake Pressure Switch; If Equipped (Refer to ASIST document NAT UP 002 07 for Product Upgrade Program W0706)

1шт.

15

89500417693

PRESSURE SWITCH

Parking Brake Pressure Switch; If Equipped (Refer to ASIST document NAT UP 002 07 for Product Upgrade Program W0706); Affects 335 Tier 2 P.I.N. HHD000501 to HHD000510 And 340 Tier 2, Serial Range: HHD000701-HHD000764

1шт.

16

8900172896

PNEUMATIC VALVE

1шт.

17

8900141335

BOLT

M8 x 50

2шт.

18

8900117243

HYD CONNECTOR

1шт.

19

8999489014

GASKET

2шт.

20

8900173271

HYD CONNECTOR

2шт.

21

89500407912

HOSE

1шт.

22

8900121507

HYD CONNECTOR

1шт.

23

89500316064

ELBOW

1шт.

24

8900095210

PLASTIC-RUBBER TUBE

D.4 x 6

1шт.

25

89500402962

90 ELBOW

1шт.

26

8916506615

NUT

1шт.

27

8916507314

FERRULE

1шт.

Выбрано товаров: 28
