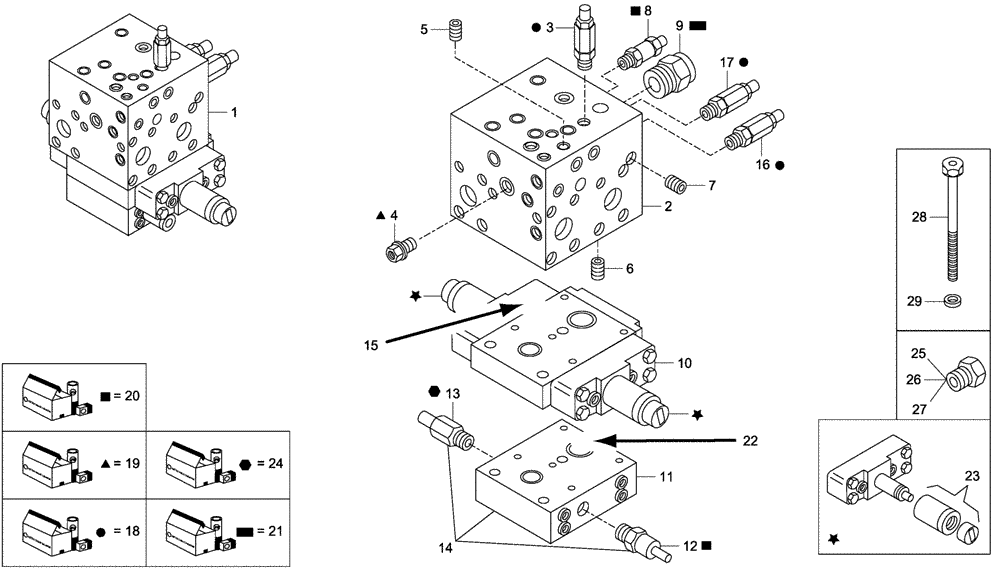

Запчасти Case 340 (72H00000002[001]) - DISTRIBUTION VALVE (89500411534) (35) - HYDRAULIC SYSTEMS

1

89500411534

DISTRIBUTOR

1шт.

Consist Ref. : 2 to 29

1шт.

2

8900134216

VALVE

1шт.

3

8900134217

SAFETY VALVE

250Bar

1шт.

4

8900134218

VALVE

1шт.

5

8900134219

DOWEL

1шт.

6

8900134220

DOWEL

1шт.

7

8900134221

DOWEL

1шт.

8

8900134222

VALVE

1шт.

9

8900134223

VALVE

1шт.

10

8900134224

VALVE

1шт.

11

8900134225

VALVE

1шт.

12

8900134226

VALVE

1шт.

13

8900134227

VALVE

1шт.

14

8900134228

VALVE

1шт.

15

8900134229

SEAL KIT

1шт.

16

8900134230

SAFETY VALVE

230Bar

1шт.

17

8900134231

SAFETY VALVE

185Bar

1шт.

18

8900134232

SEAL KIT

3шт.

Consist Ref. : 3, 16, 17

1шт.

19

8900134233

SEAL KIT

1шт.

Consist Ref. : 4

1шт.

20

8900134234

SEAL KIT

2шт.

Consist Ref. : 8, 12

1шт.

21

8900134235

SEAL KIT

1шт.

Consist Ref. : 9

1шт.

22

8900134236

SEAL KIT

1шт.

23

8900134237

SOLENOID

2шт.

24

8900134238

SEAL KIT

1шт.

Consist Ref. : 13

1шт.

25

8900134239

PLUG

1/8"

1шт.

26

8900134240

PLUG

1/4"

1шт.

27

8900134241

PLUG

3/4"

1шт.

28

8900134242

BOLT

M12 x 130

3шт.

29

8900134243

WASHER

3шт.
