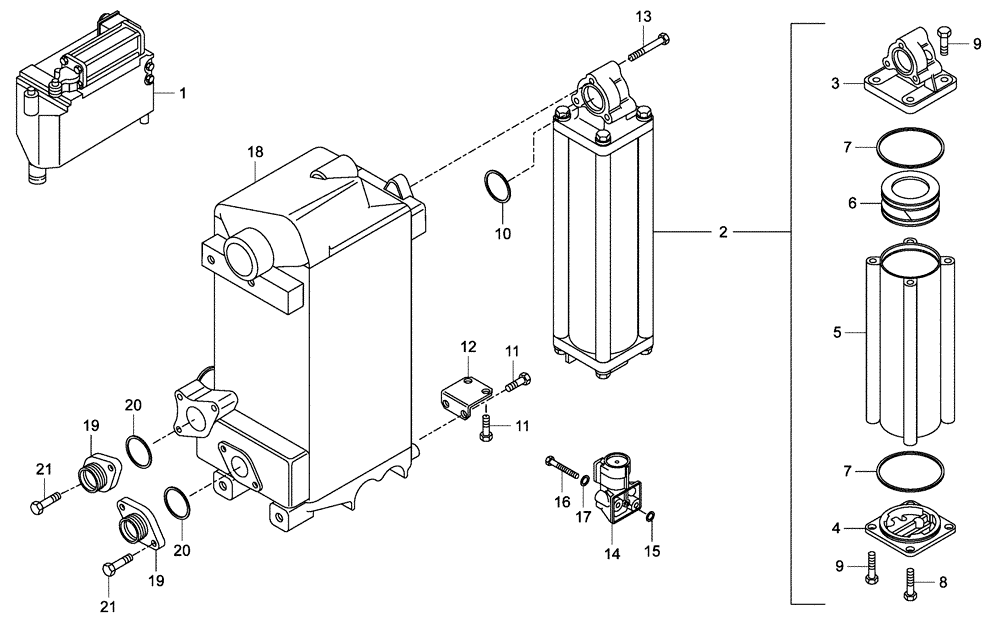

Запчасти Case 340 (05B00000011[001]) - TRANSMISSION - HEAT EXCAHANGER (89500404431) (21) - TRANSMISSION

1

89500404431

HEAT EXCHANGER

1шт.

Consist Ref. 2, 10 To 21

1шт.

2

8900118875

TANK

1шт.

Consist Ref. 3 To 9

1шт.

3

8900118876

COVER

1шт.

4

8900118877

SUPPORT

1шт.

5

8900118878

PIPE

1шт.

6

8900118879

PISTON

1шт.

7

8900118880

THRUST RING

2шт.

8

8900117521

BOLT

M10 x 60; Replaces 8900118149 Screw M10 x 60

1шт.

9

8900118881

SCREW,Hex

M10 x 35

7шт.

10

8900108145

SEALING RING

38 x 3

1шт.

11

8900118885

BOLT,M8 x 18mm

8 x 18

4шт.

12

8900118884

SUPPORT

1шт.

13

8900118883

BOLT,M8 x 60mm

M8 x 60

2шт.

14

8900133323

VALVE

1шт.

15

8900108337

SEALING RING

7 x 2

1шт.

16

8900118888

BOLT,M8 x 55mm

M8 x 55

2шт.

17

8900115802

WASHER

2шт.

18

8900132660

HEAT EXCHANGER

Replaces 8900118873 Heat Exchanger, Aluminum

1шт.

18

84578528

HEAT EXCHANGER

Heat Exchanger, Stainless Steel

1шт.

19

8900118889

FITTING

2шт.

20

8900117503

THRUST RING

37 x 3

2шт.

21

8900117523

BOLT,M8 x 28mm

M8 x 28

4шт.

22

47408267

KIT

Kit, Heat Exchange Mounting (Not Shown)

1шт.

23

47408269

KIT

Kit, Heat Exchange mounting (Not Shown)

1шт.
