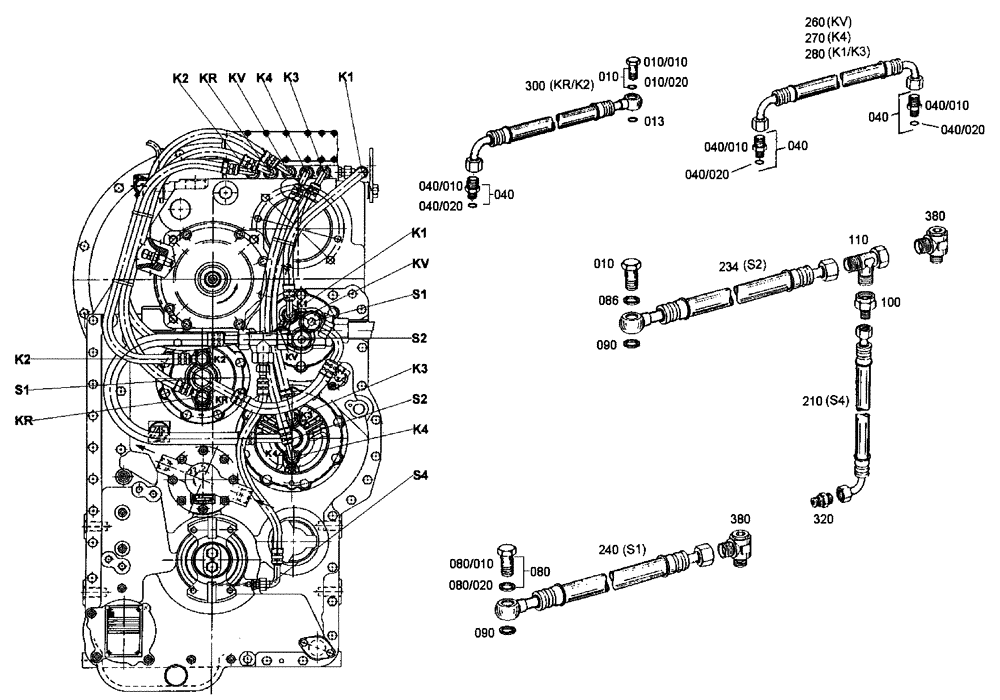

Запчасти Case 340 (18A00000599[001]) - OIL PIPE (14) - MAIN GEARBOX & DRIVE

010

8900130498

BOLT

1шт.

Include Ref. 010/010, 010/020

1шт.

010/010

8900126996

BANJO BOLT

2шт.

010/020

8963100700

SEALING RING

2шт.

013

8963100758

SEALING RING

2шт.

Include Ref. 040/010, 040/020

1шт.

040/010

8963100701

HYD CONNECTOR

10шт.

040/020

8963100700

SEALING RING

10шт.

Include Ref. 080/010, 080/020

1шт.

080/010

8900129027

BANJO BOLT

1шт.

080/020

8900129028

SEALING RING,2mm Thk x 19mm ID, 70 Duro

1шт.

086

8900129028

SEALING RING,2mm Thk x 19mm ID, 70 Duro

1шт.

090

8900130497

SEALING RING

2шт.

100

8900127006

REDUCER

1шт.

110

8900127007

HYD CONNECTOR

1шт.

210

8900127008

HOSE

1шт.

234

8605466

HOSE ASSY.

1шт.

240

8605467

HOSE

1шт.

260

8605499

HOSE ASSY.

1шт.

270

8900127011

HOSE

1шт.

280

8963100769

FLEXIBLE HOSE

2шт.

300

8900129032

HOSE

2шт.

320

8900127013

HYD CONNECTOR

1шт.

380

8900127014

HYD CONNECTOR

2шт.
