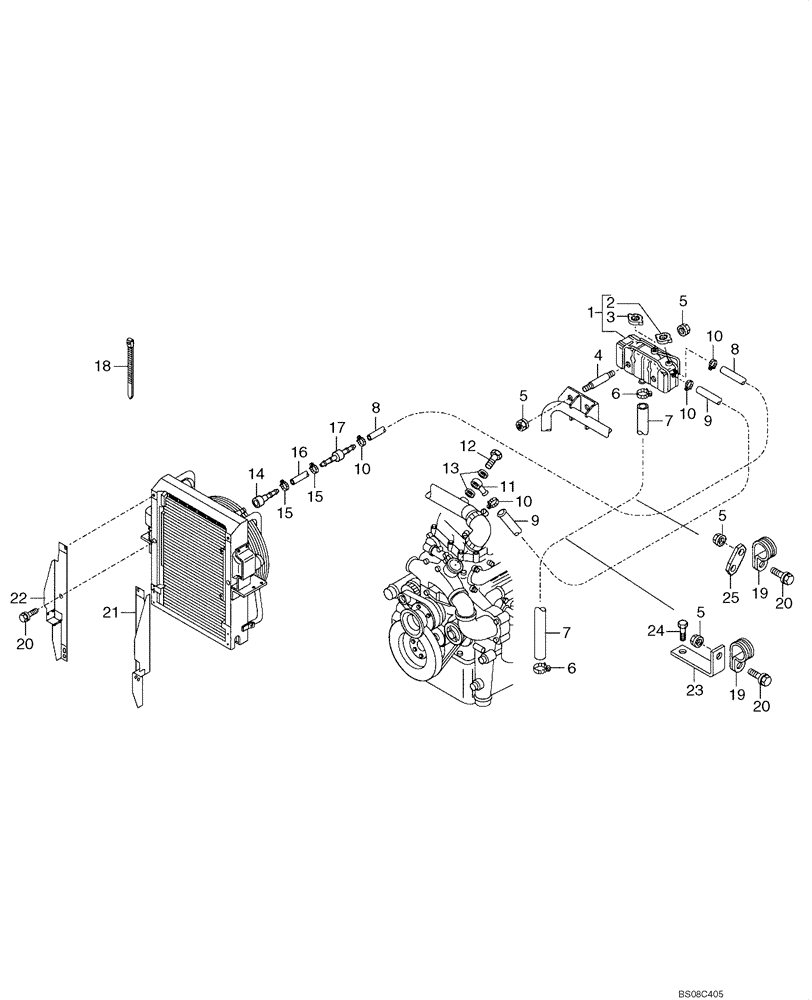

Запчасти Case 335B (04A00000635[001]) - RADIATOR / RESERVOIR COOLING CIRCUIT (87585067) (01) - ENGINE

1

8900152343

RESERVOIR, COOLANT E

1шт.

Include(s) 2, 3

1шт.

2

8900112131

RADIATOR CAP

1шт.

3

8900112130

RADIATOR CAP

1шт.

4

8900174439

INSULATOR BLOCK

4шт.

5

8900140590

NUT

M8; Qty Was 8

8-10шт.

6

8900110494

COLLAR

2шт.

7

8900163778

AIR HOSE

2750 mm

1шт.

8

8900172587

HOSE

1900 mm

1шт.

9

8900165281

HOSE

1650 mm

1шт.

10

8900192755

COLLAR

4шт.

11

8900957443

HYD CONNECTOR

1шт.

12

8900955155

BANJO BOLT

1шт.

13

8900030874

COPPER SEAL

2шт.

14

8900192756

BREATHER

1шт.

15

8900192754

COLLAR

2шт.

16

8900192758

HOSE

1шт.

17

8900192759

FITTING

1шт.

18

8900150511

COLLAR

1шт.

19

8917317590

COLLAR

Qty Was 1

1-2шт.

20

8900116549

BOLT

M8 x 20; Qty Was 1

1-4шт.

21

89500421133

SHIELD

LH; Until P.I.N. HHD0335BXXXXXXXXX

1шт.

21-1

89500426117

SHIELD

LH; P.I.N. HHD0335BXXXXXXXXX And After - Not Illustrated

1шт.

22

89500421134

SHIELD

RH; Until P.I.N. HHD0335BXXXXXXXXX

1шт.

22-1

89500426129

SHIELD

RH; P.I.N. HHD0335BXXXXXXXXX And After - Not Illustrated

1шт.

23

89500408061

BRACKET

If Used

1шт.

24

8900115555

BOLT,M8 x 30mm

M8 x 30; If Used

1шт.

25

89500408953

SUPPORT

If Used

1шт.
