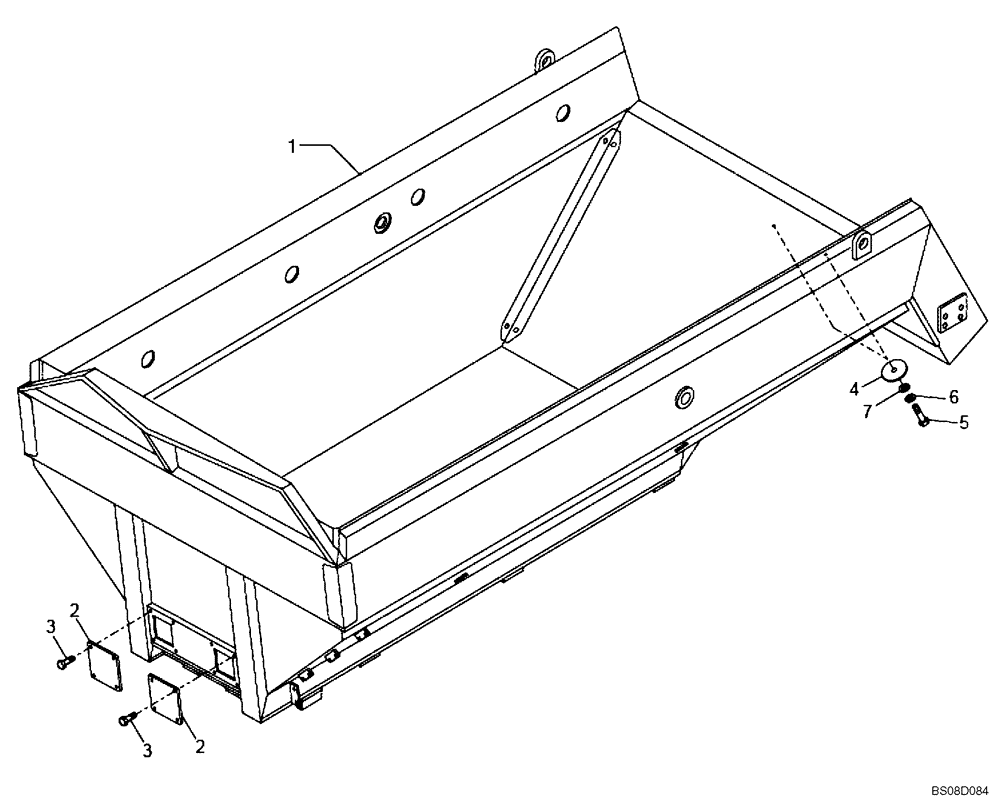

Запчасти Case 335B (72A01010724[003]) - DUMP BODY, ROCK W/SIDEBOARD EXTENSIONS (89500425564) (19) - OPTIONS

1

89500425564

DUMP BODY

ROCK BED W/ SIDE BOARD EXTENSIONS

1шт.

REF

INSTRUCTION

See Figure 72A01020724 (001)

1шт.

2

89500425841

DUMP BODY

PLATE, COVER; If Used

2шт.

3

8918139525

SCREW,M10 x 30mm

M10 x 30; If Used

8шт.

4

8998198699

COVER

If Used

2шт.

5

8900172961

BOLT

M8 x 30; If Used

2шт.

6

8900101776

LOCK WASHER

If Used

2шт.

7

8900145012

COLLAR

IF Used

2шт.
