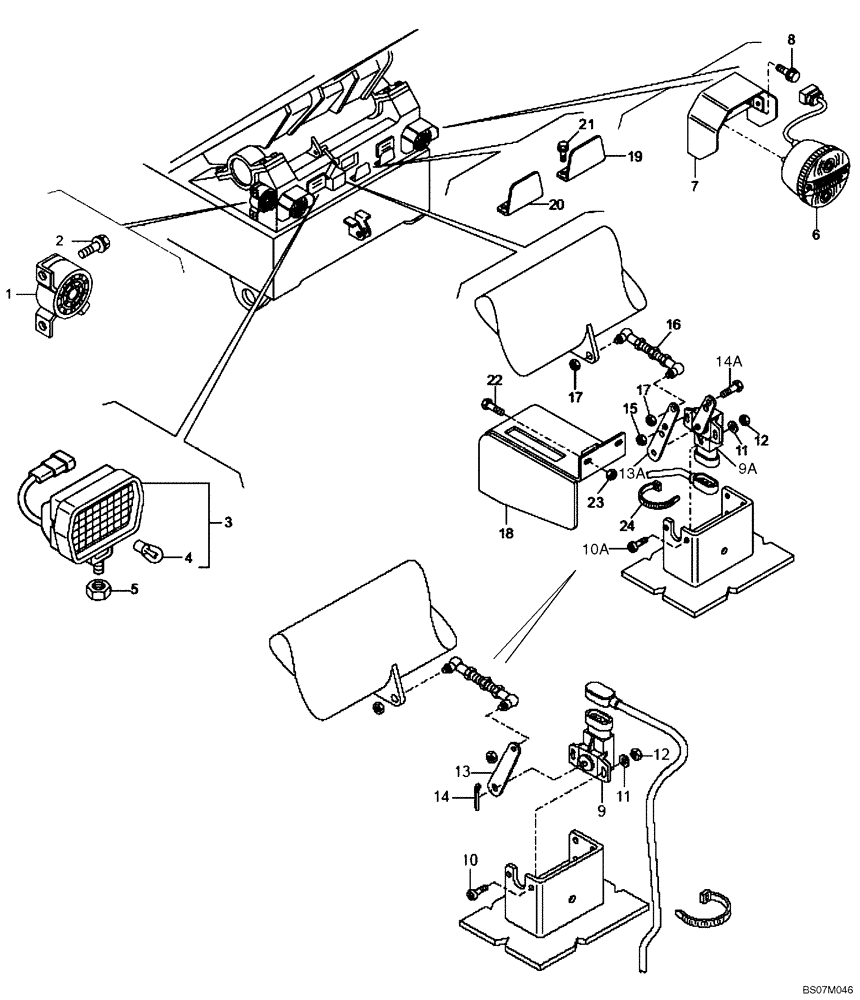

Запчасти Case 335B (67A03031463[001]) - TAIL LIGHTS / HORN / SENSORS - REAR CHASSIS (87590743) (13) - Electrical System / Decals

1

89500406751

HORN

1шт.

2

8900116550

BOLT,M6 x 10mm

M6 x 10

2шт.

3

89500402930

LIGHT

2шт.

Include(s) 4

1шт.

4

8998340094

BULB

1шт.

5

8900140777

NUT

2шт.

6

8900193803

TAIL LAMP

2шт.

See Figure(s) 67C00000014

1шт.

7

89500408616

SHIELD

2шт.

8

8900121098

BOLT,M8 x 16mm

M8 x 16

4шт.

9

89500421111

SENSOR

If Used

1шт.

9a

89500418765

SENSOR

If Used

1шт.

Code MUX68 is generated by this potentiometer. Before ordering a new one, check for dirt build up on the rear frame rail. If there is a buildup and the bed cannot drop to a complete down position the code will also write. Chipping off any dirt and debris may correct the codes.

1шт.

10

8917014408

SCREW,M4 x 10mm

M4 x 10; If Used

2шт.

10a

8900114280

SCREW,M4 x 20mm

M4 x 20; If Used

2шт.

11

8900141565

WASHER

2шт.

12

8900049208

NUT

2шт.

13

89500419769

BRACKET

If Used

1шт.

13a

89500422906

BRACKET

If Used

1шт.

14

8900049140

PIN, SPLIT (COTTER)

PIN, COTTER If Used

1шт.

14a

8900124628

BOLT

M5 x 16; If Used

2шт.

15

8900012607

NUT

M5; If Used

2шт.

16

8900162377

CONNECTING ROD

1шт.

17

8900140728

NUT

2шт.

18

89500423800

SHIELD

If Used

1шт.

19

89500423801

COVER

If Used

1шт.

20

89500423802

COVER

If Used

1шт.

21

8900116551

BOLT,M6 x 16mm

M6 x 16; If Used

4шт.

22

8900124628

BOLT

M6 x 20; If Used

2шт.

23

8900125009

NUT

M6: If Used

2шт.

24

8900150511

COLLAR

1шт.
