(67A01011689[001]) - WIRE HARNESSES, GEARBOX / MONITOR / FLEET LINK (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87746202)

Запчасти Case 335B (67A01011689[001]) - WIRE HARNESSES, GEARBOX / MONITOR / FLEET LINK (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87746202) (13) - Electrical System / Decals

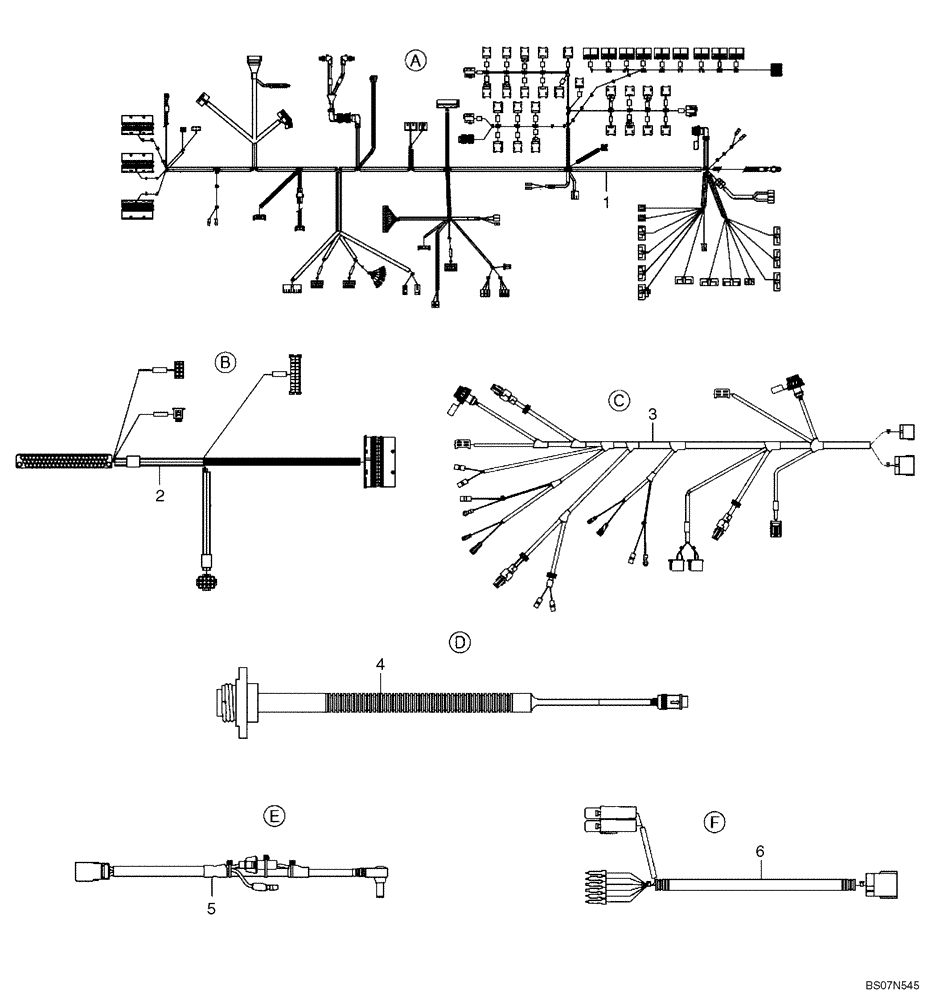

Схема запчастей Case 335B - (67A01011689[001]) - WIRE HARNESSES, GEARBOX / MONITOR / FLEET LINK (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87746202) (13) - Electrical System / Decals
6
1
4
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500423497

WIRE HARNESS

CAB - SIMPLE MUX UNITS

1шт.

2

89500423014

WIRE HARNESS

HARNESS, WIRE TRANSMISSION CAB

1шт.

3

8900192867

WIRE HARNESS

CEILING LIGHT

1шт.

4

89500408935

WIRE HARNESS

MONITOR CAB

1шт.

5

89500403276

WIRE HARNESS

INPUT MONITOR

1шт.

6

89500405070

WIRE HARNESS

INPUT FLEET LINK

1шт.

Выбрано товаров: 6
