(67A00011702[001]) - WIRE HARNESSES, ENGINE / GEARBOX / BATTERY / BRAKE (87590896)

Запчасти Case 335B (67A00011702[001]) - WIRE HARNESSES, ENGINE / GEARBOX / BATTERY / BRAKE (87590896) (13) - Electrical System / Decals

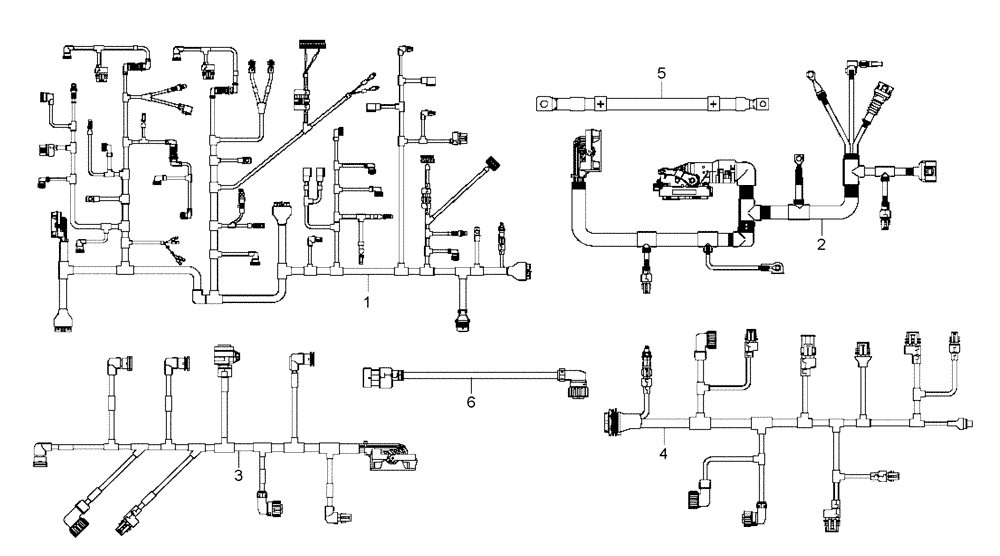

Схема запчастей Case 335B - (67A00011702[001]) - WIRE HARNESSES, ENGINE / GEARBOX / BATTERY / BRAKE (87590896) (13) - Electrical System / Decals
6
3
5
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500421922

WIRE HARNESS

FRAME-SERVICES

1шт.

2

89500415489

WIRE HARNESS

FRAME-ENGINE

1шт.

3

89500408931

WIRE HARNESS

GEARBOX-FRAME

1шт.

4

89500420510

WIRE HARNESS

FRAME-SERVICES REAR

1шт.

5

89500408933

NEG BATTERY CABLE

BATTERY

1шт.

6

89500417996

WIRE HARNESS

BRAKE COOLING

1шт.
