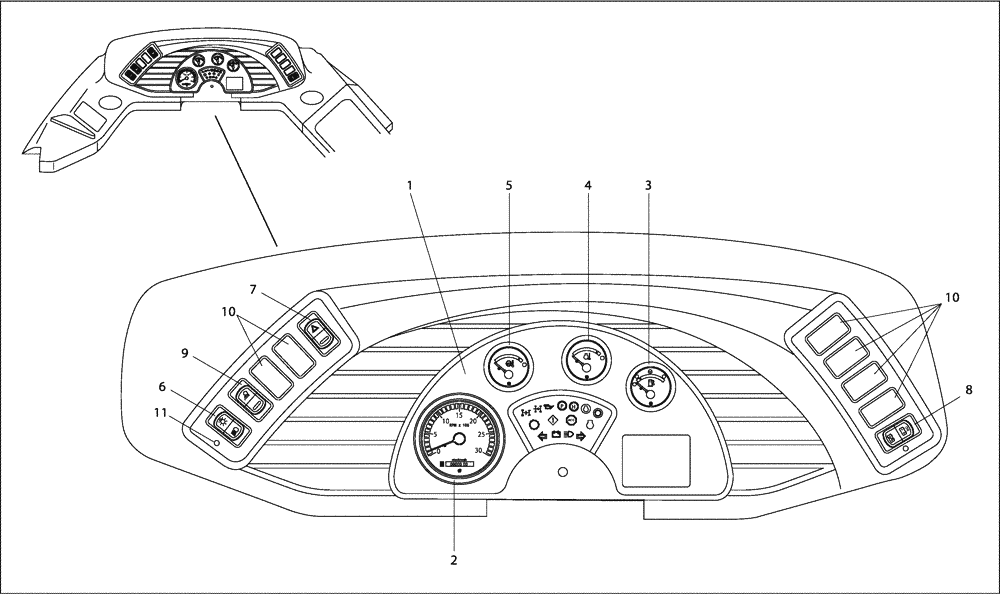

Запчасти Case 335B (67A00011450[001]) - INSTRUMENT PANEL (87585901) (13) - Electrical System / Decals

1

89500431804

INSTRUMENT PANEL

Replaces 89500424492 Control Unit And 89500417888 Control Unit

1шт.

89500431804R

REMAN-INSTR CLUSTER

335B TIER 3 (EU) (4/07-)

1шт.

89500431804C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

89500409501

COUNTER

Tachometer

1шт.

3

89500409502

INDICATOR

Fuel Gauge

1шт.

4

89500409503

INDICATOR

Engine Water Temp Gauge

1шт.

5

89500409504

INDICATOR

Engine Oil Temp Gauge

1шт.

6

89500409372

SWITCH

Light

1шт.

7

89500409374

SWITCH

Hazzard Light

1шт.

8

89500409382

SWITCH

Battery Engage

1шт.

9

89500409373

SWITCH

Work Light

1шт.

10

89500409508

PLUG

6шт.

11

8998199849

BOLT

M4 x 12

8шт.
