(67A00011447[001]) - CONTROLS, SIDE INSTRUMENTS PANEL (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87745487)

Запчасти Case 335B (67A00011447[001]) - CONTROLS, SIDE INSTRUMENTS PANEL (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87745487) (13) - Electrical System / Decals

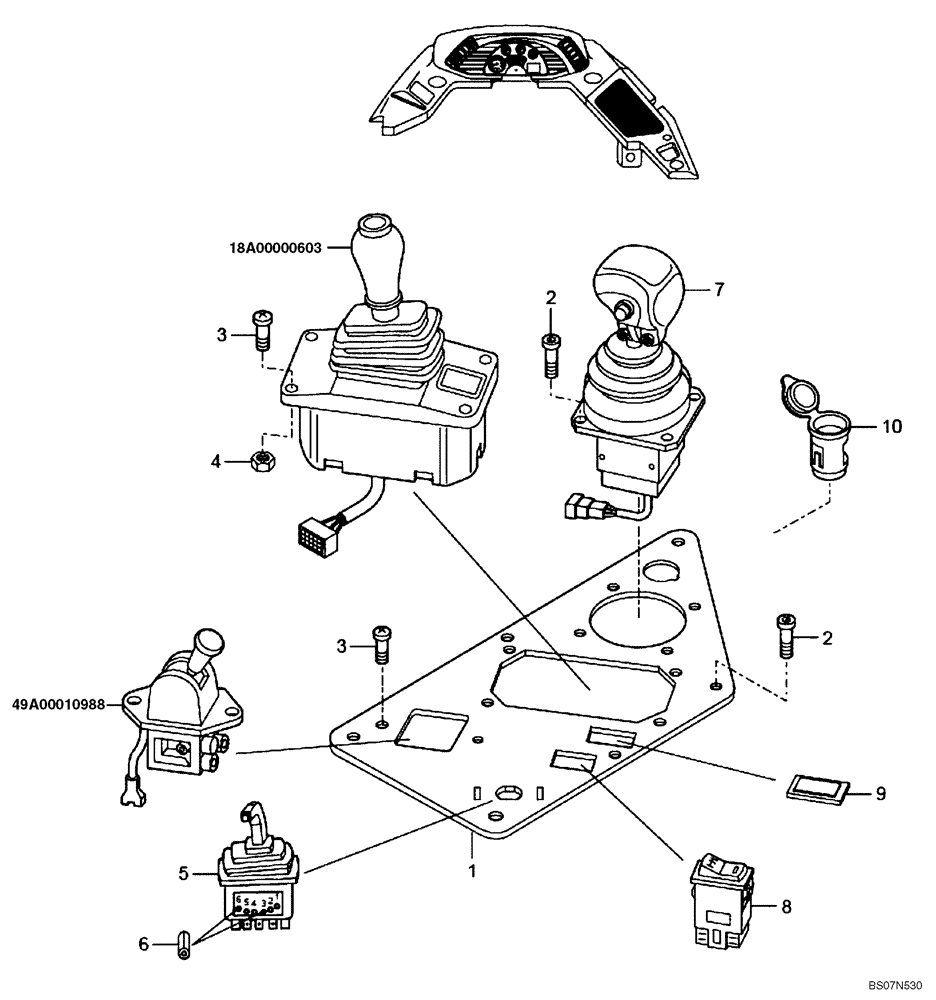

Схема запчастей Case 335B - (67A00011447[001]) - CONTROLS, SIDE INSTRUMENTS PANEL (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87745487) (13) - Electrical System / Decals
10
2
3
6
1
7
9
3
5
49a00010988
2
8
4
18a00000603
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500409303

HOUSING

PLATE, MOUNTING

1шт.

2

8998199849

BOLT

M4 x 12

10шт.

3

8917032877

SCREW,M6 x 25mm

M6 x 25

6шт.

4

8900101322

NUT

S.L.

4шт.

5

8998454560

MANIPULATOR

RETARDER ENGINE BRAKE

1шт.

6

8917234910

ELEC. TERMINAL PIN

PIN

2шт.

7

89500419145

MANIPULATOR

CONTROL SHIFT

1шт.

8

89500409376

SWITCH

REAR DIFFERENTIAL LOCK

1шт.

9

89500409508

PLUG

1шт.

10

8941200583

SOCKET

1шт.

Выбрано товаров: 10
