(67A00002144[001]) - SWITCHES, START AND BATTERY DISCONNECT - OPTIONAL (P.I.N. HHD0335BN8PG58147 AND AFTER) (84243030)

Запчасти Case 335B (67A00002144[001]) - SWITCHES, START AND BATTERY DISCONNECT - OPTIONAL (P.I.N. HHD0335BN8PG58147 AND AFTER) (84243030) (13) - Electrical System / Decals

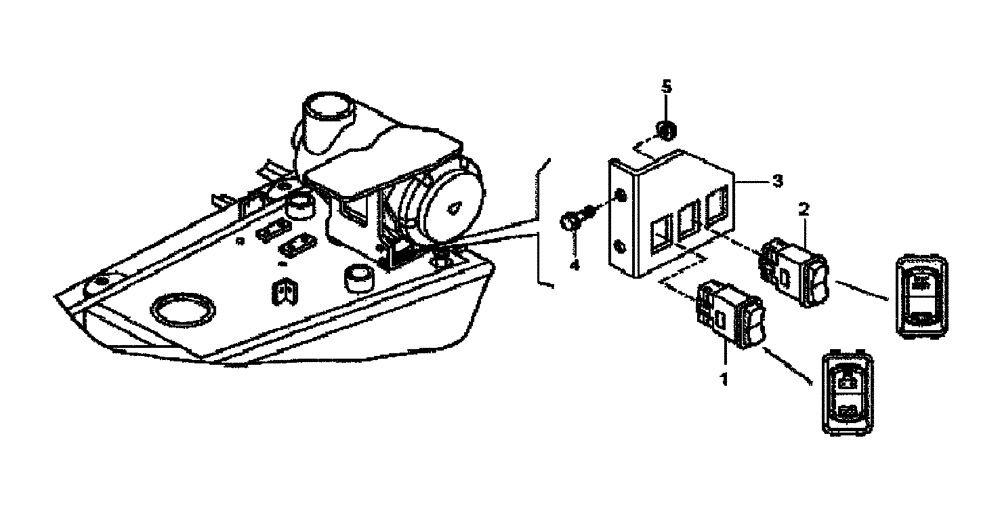

Схема запчастей Case 335B - (67A00002144[001]) - SWITCHES, START AND BATTERY DISCONNECT - OPTIONAL (P.I.N. HHD0335BN8PG58147 AND AFTER) (84243030) (13) - Electrical System / Decals
5
1
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Switches, Start and Battery Disconnect - Optional (84243030)

1шт.

1

89500409382

SWITCH

Battery Disconnect

1шт.

2

89500409383

SWITCH ASSY

Start Stop

1шт.

3

89500419001

BRACKET

1шт.

4

8900121098

BOLT,M8 x 16mm

2шт.

5

8900115122

NUT

2шт.

Выбрано товаров: 6
