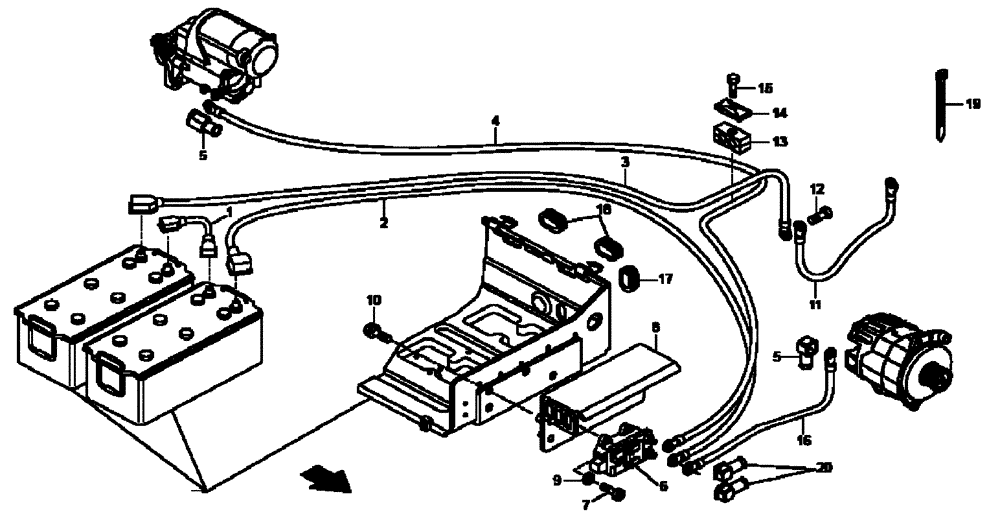

Запчасти Case 335B (67A00002134[001]) - CABLES, BATTERY (P.I.N. HHD0335BN8PG58147 AND AFTER) (84237867) (13) - Electrical System / Decals

REF

INSTRUCTION

Battery Cables (84237867), Start Serial: 58147

1шт.

1

89500409793

CABLE

, Serial Range: Battery-Battery

1шт.

2

89500405253

CABLE

Battery Positive

1шт.

3

8900189067

CABLE

Battery Negative

1шт.

4

89500409331

CABLE

Battery Negative - Starter

1шт.

5

8900142325

PROTECTION CAP

2шт.

6

89500436444

SWITCH

Battery Disconnect

1шт.

7

8900003224

BOLT,M8 x 30mm

4шт.

8

89500408943

SUPPORT

1шт.

9

8900956220

LOCK WASHER

4шт.

10

8900115555

BOLT,M8 x 30mm

6шт.

11

89500409332

CABLE

Ground -, Serial Range: Engine-Frame

1шт.

12

8900121098

BOLT,M8 x 16mm

1шт.

13

8900164549

CLAMP

2шт.

14

8900174958

COVER PLATE

1шт.

15

8916586725

BOLT

1шт.

16

89500418404

ELECTRIC CABLE

, Serial Range: Switch-Alternator

1шт.

17

8900122409

GASKET

1шт.

18

8900122408

GASKET

2шт.

19

8900045763

STRAP

1шт.

20

8900115153

CABLE

Battery

2шт.
