Запчасти Case 335B (33A00010059[001]) - SECTION INDEX, REAR AXLE (89500423515) (11) - AXLES/WHEELS

1

89500423515

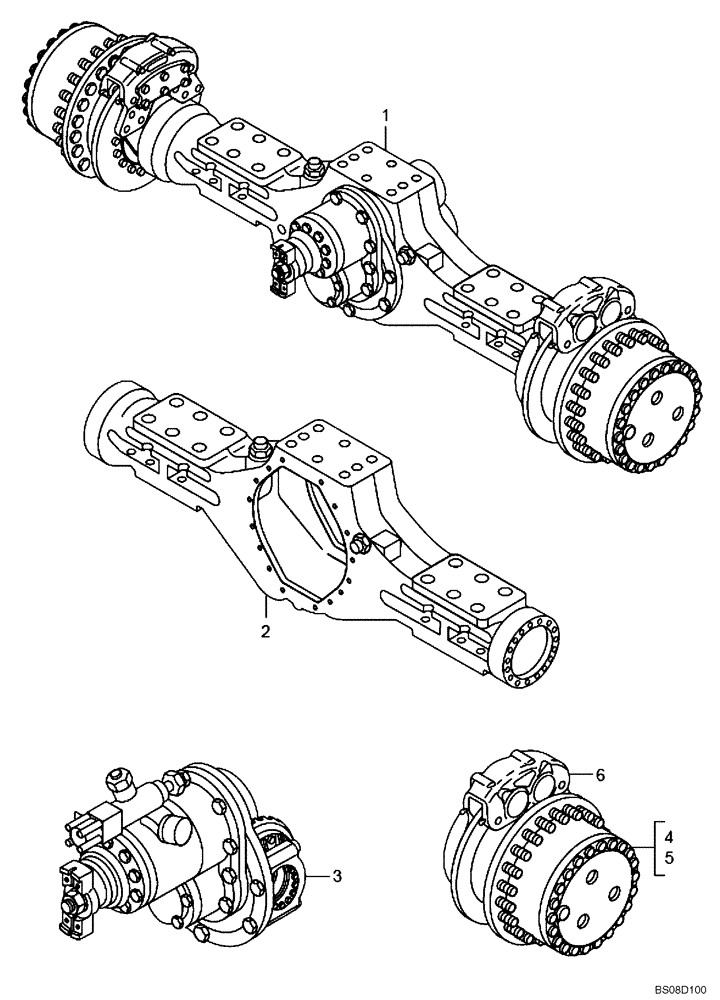

REAR AXLE

Include(s) 2 - 6; See Figure(s) Listed Below For Assembly Breakdown

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Rear Axle (87471357)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00010734 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Differential, Rear Axle (87471367)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00010735 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Carrier Limited Slip, Differential (87454878)

2шт.

REF

INSTRUCTION

See Figure(s) 33A00000741 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Reduction Gear, Wheel (874707723)

2шт.

REF

INSTRUCTION

See Figure(s) 32A00010657 (001) For Service Breakdown

1шт.

6

NSS

NOT SOLD SEPARAT

Brake Mounting (87470730)

2шт.

REF

INSTRUCTION

See Figure(s) 32A00010658 (001) For Service Breakdown

1шт.
