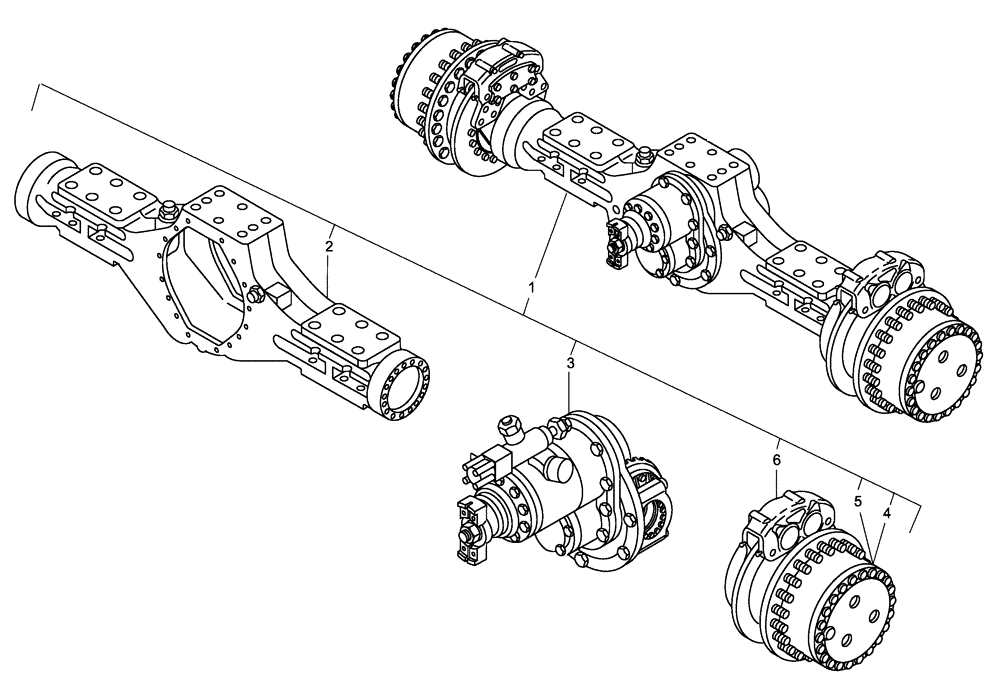

Запчасти Case 335B (33A00000059[001]) - SECTION INDEX, REAR AXLE ASSY (89500414676) (11) - AXLES/WHEELS

1

89500414676

AXLE

REAR; Include(s) 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Rear Axle Housing (87363346)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000739 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Rear Axle Differential (87363348)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000740 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Rear Axle Wheel Reduction Gear (87454878)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000741 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Rear Axle Wheel Reduction Gear (87363340)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000742 (001) For Service Breakdown

1шт.

6

NSS

NOT SOLD SEPARAT

Rear Axle Brake Mounting (87363285)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000743 (001) For Service Breakdown

1шт.
