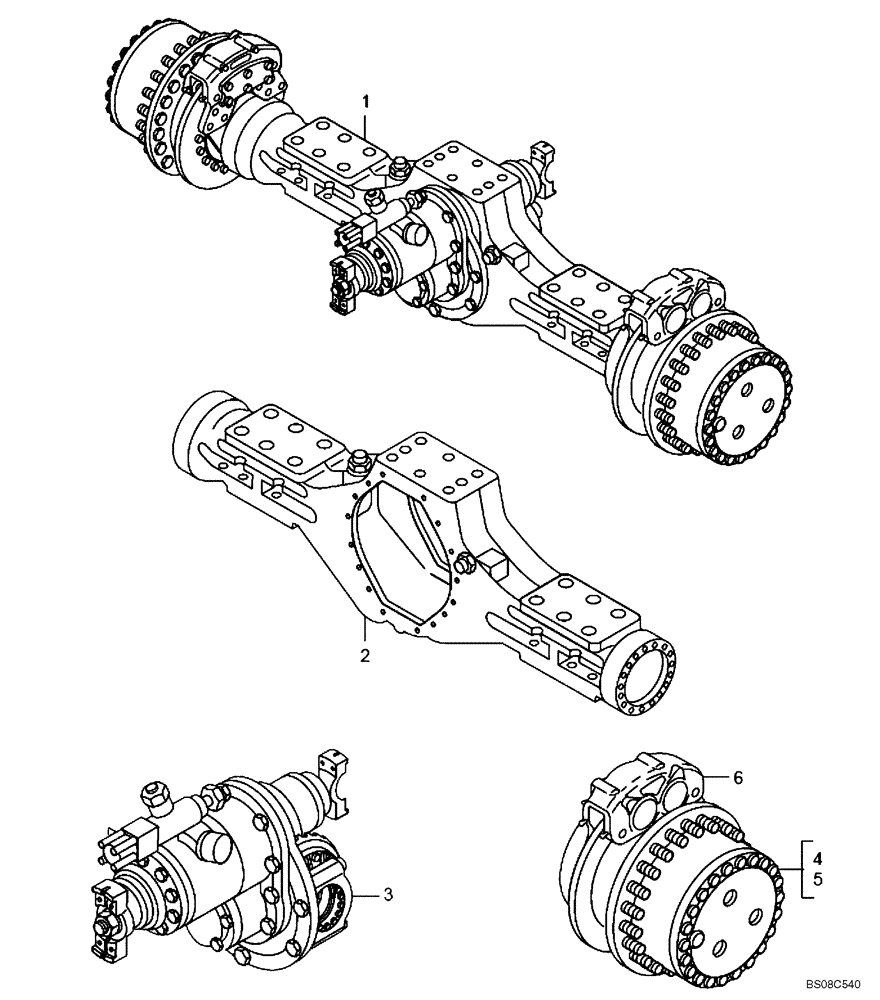

Запчасти Case 335B (32A00010058[001]) - SECTION INDEX, INTERMEDIATE AXLE (89500423514) (11) - AXLES/WHEELS

1

89500423514

DRIVE AXLE

ASSY; Include(s) 2 - 6 See Figures Listed Below For Assembly Breakdown

1шт.

2

NSS

NOT SOLD SEPARAT

Axle Housing, Intermediate (87757844)

1шт.

REF

INSTRUCTION

See Figure(s) 32A00010649 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Differential Assembly, Intermediate (87363325)

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000655 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Differential Carrier Limited Slip, Intermediate (87454878)

2шт.

REF

INSTRUCTION

See Figure(s) 32A00000656 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Wheel Reduction Gear, Intermediate (87470723)

2шт.

REF

INSTRUCTION

See Figure 32A00010657 (001) For Service Breakdown

1шт.

6

NSS

NOT SOLD SEPARAT

Brake Mounting Parts, Intermediate (87470730)

2шт.

REF

INSTRUCTION

See Figure 32A00010658 (001) For Service Breakdown

1шт.
