(32A00000684[001]) - BREATHER, INTERMEDIATE AXLE (P.I.N. HHD0335BN8PG58147 AND AFTER) (84236558)

Запчасти Case 335B (32A00000684[001]) - BREATHER, INTERMEDIATE AXLE (P.I.N. HHD0335BN8PG58147 AND AFTER) (84236558) (11) - AXLES/WHEELS

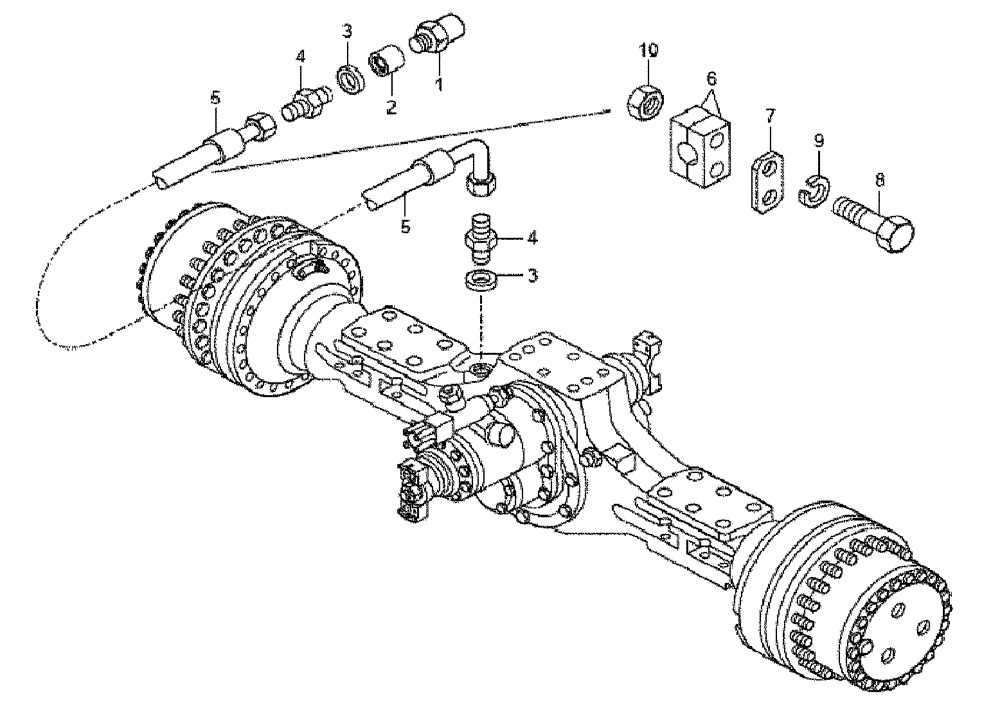

Схема запчастей Case 335B - (32A00000684[001]) - BREATHER, INTERMEDIATE AXLE (P.I.N. HHD0335BN8PG58147 AND AFTER) (84236558) (11) - AXLES/WHEELS
3
7
5
3
9
1
5
10
4
4
2
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Breather, Intermediate Axle (84236558), Start Serial: 58147

1шт.

1

8900133013

BREATHER

1шт.

2

89500401611

BUSHING

1шт.

3

8900115474

COPPER SEAL

2шт.

4

8900141350

HYD CONNECTOR

2шт.

5

89500415569

HOSE ASSY.

1шт.

6

8900108841

COLLAR

2шт.

7

89500407422

PLATE

1шт.

8

8900010369

BOLT

2шт.

9

8900955275

LOCK WASHER

2шт.

10

8900108842

NUT

2шт.

Выбрано товаров: 11
