(30A00010058[001]) - SECTION INDEX, FRONT WHEEL HUB (89500423513)

Запчасти Case 335B (30A00010058[001]) - SECTION INDEX, FRONT WHEEL HUB (89500423513) (11) - AXLES/WHEELS

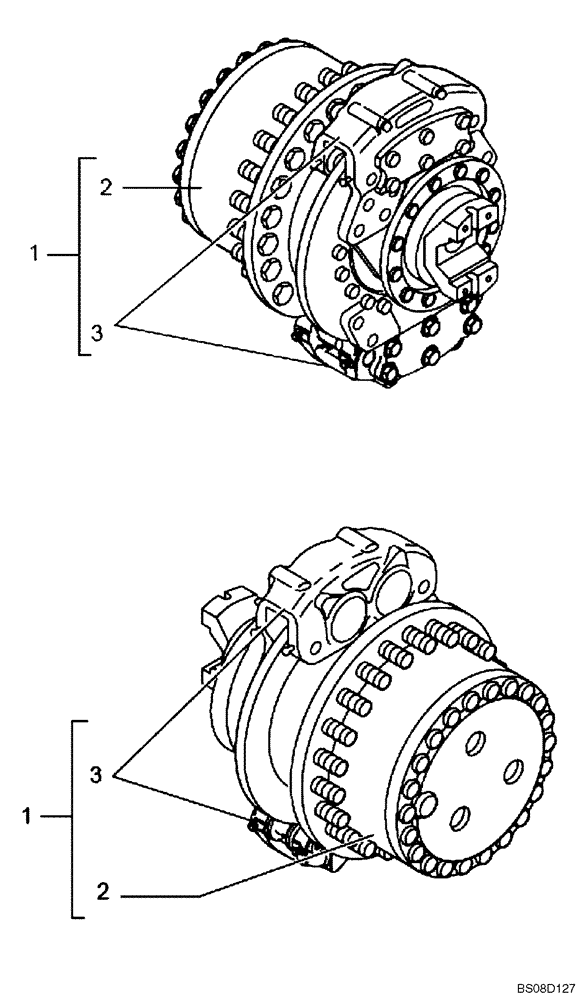

Схема запчастей Case 335B - (30A00010058[001]) - SECTION INDEX, FRONT WHEEL HUB (89500423513) (11) - AXLES/WHEELS
1
2
2
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500423513

HUB

ASSY; Include(s) 2,3 - See Figures Listed Below For Service Breakdown

1шт.

2

NSS

NOT SOLD SEPARAT

Reduction Gear, Front Wheel Hub (87754272)

1шт.

REF

INSTRUCTION

See Figure(s) 30A00010656 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Brake Mounting, Front Wheel Hub (87754273)

2шт.

REF

INSTRUCTION

See Figure(s) 30A00010657 (001) For Service Breakdown

1шт.

Выбрано товаров: 5
