(59A01010545[001]) - ENGINE HOOD ASSY (P.I.N. HHD0335BN8PGXXXXX AND AFTER) (87483405)

Запчасти Case 335B (59A01010545[001]) - ENGINE HOOD ASSY (P.I.N. HHD0335BN8PGXXXXX AND AFTER) (87483405) (10) - Cab/Cowlings

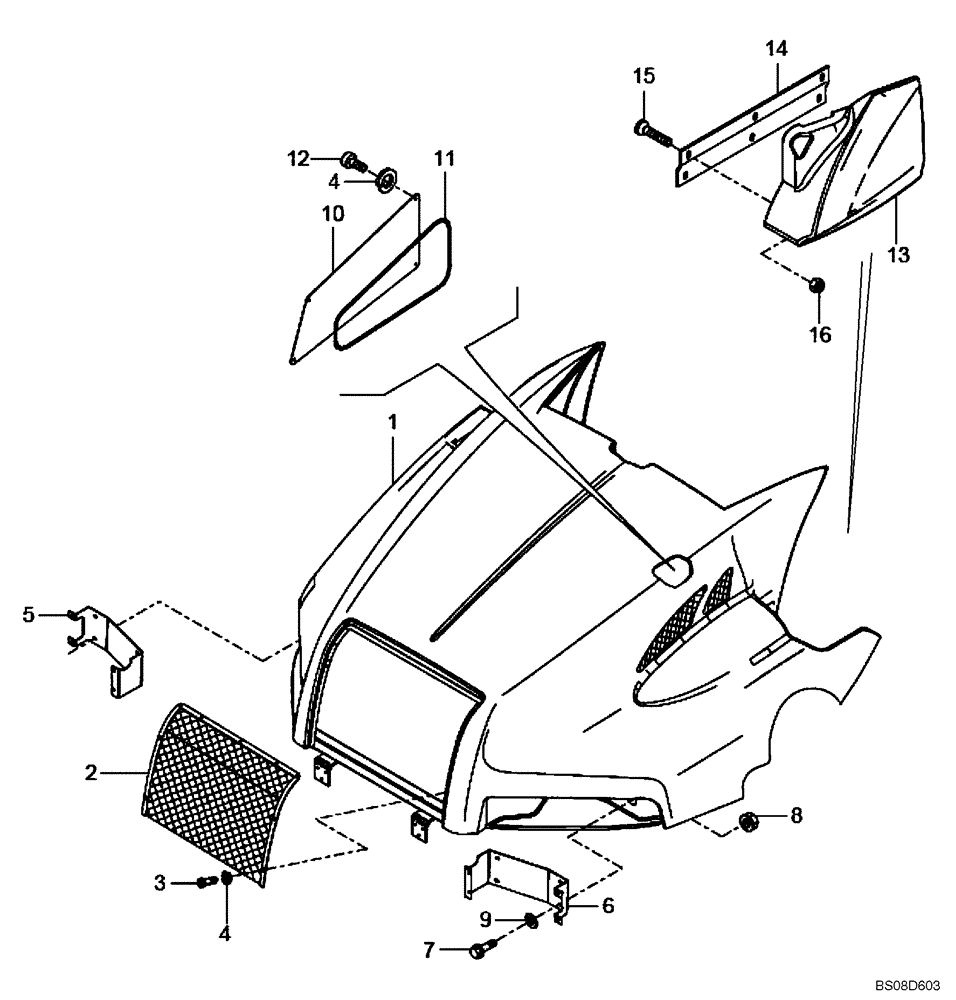

Схема запчастей Case 335B - (59A01010545[001]) - ENGINE HOOD ASSY (P.I.N. HHD0335BN8PGXXXXX AND AFTER) (87483405) (10) - Cab/Cowlings
8
1
14
9
7
13
10
15
4
5
3
11
16
6
2
12
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500426662

HOOD

ENGINE COMPARTMENT

1шт.

2

89500426680

GRILLE

ENGINE HOOD

1шт.

3

8917031577

SCREW,M5 x 16mm

M5 x 16

9шт.

4

8900956746

WASHER

BEVEL

9шт.

5

89500427499

SUPPORT

RH

1шт.

6

89500427498

SUPPORT

LH

1шт.

7

8916586424

BOLT,M8 x 25mm

M8 x 25

8шт.

8

8900115122

NUT

S.L.

8шт.

9

8900113172

WASHER

16шт.

10

89500426679

PANEL

SIDE

1шт.

11

89500419867

GASKET

Replaces 89500426678 Gasket, Side Panel

1шт.

12

8900127112

SCREW,Rd, M6 x 20mm

RD HD M6 x 20

4шт.

13

89500424307

COVER

Replaces 89500424305 Cover Cheek

1шт.

14

89500424310

BRACKET

1шт.

15

8900179409

BOLT,M8 x 25mm

M8 x 25

3шт.

16

8900115122

NUT

S.L.

3шт.
