Запчасти Case 335B (43K00000008[001]) - FILTER ASSY, HYDRAULIC STEERING (8998340166) (09) - Implement / Hydraulics / Frame / Brakes

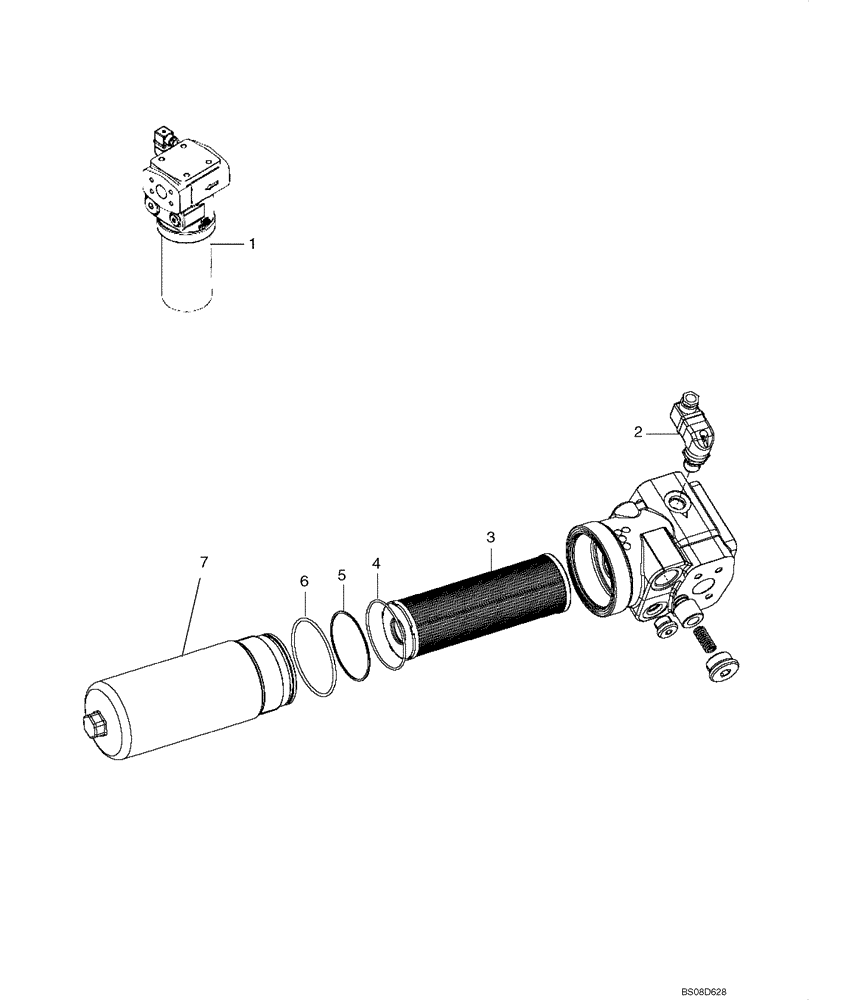

Схема запчастей Case 335B - (43K00000008[001]) - FILTER ASSY, HYDRAULIC STEERING (8998340166) (09) - Implement / Hydraulics / Frame / Brakes
7
3
6
5
4
1
2

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Filter Assy 8998340166; Order Individual Components From Breakdown Listed

1шт.

2

8998340849

SWITCH

RESTRICTION INDICATOR

1шт.

3

8998340023

HYDRAULIC OIL FILTER

Replaces 8998340238 Filter, Hydraulic Oil Used On Some Models

1шт.

4

8998340024

RING

1шт.

5

8998340025

RING

1шт.

6

8998340026

RING

1шт.

7

8998341422

HOUSING

Filter; Replaces 8998340850 Cover, Filter Element

1шт.

Выбрано товаров: 7
