(43A00020872[001]) - MOUNTING, HOSE / HYDRAULIC STEERING FILTER (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87756279)

Запчасти Case 335B (43A00020872[001]) - MOUNTING, HOSE / HYDRAULIC STEERING FILTER (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87756279) (09) - Implement / Hydraulics / Frame / Brakes

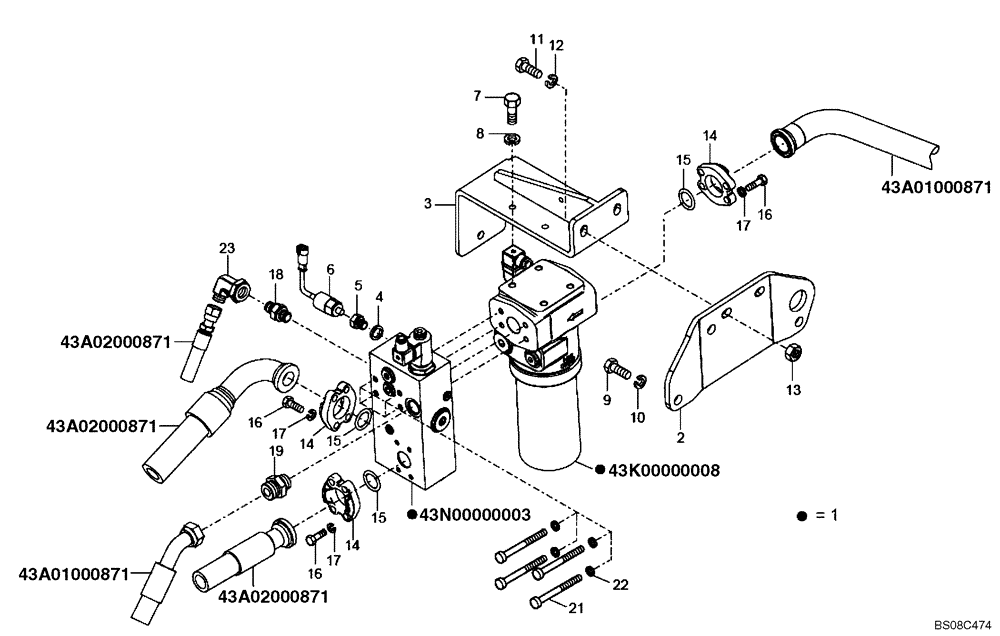

Схема запчастей Case 335B - (43A00020872[001]) - MOUNTING, HOSE / HYDRAULIC STEERING FILTER (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87756279) (09) - Implement / Hydraulics / Frame / Brakes
2
6
43a02000871
43k00000008
5
18
16
14
17
22
4
43a02000871
14
15
15
11
3
10
8
7
23
43n00000003
21
17
16
1
43a01000871
15
12
9
16
17
14
19
16
13
43a01000871
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8998341351

FILTER ASSY

Incl Valve Block Assy - Replaces 8998340166 NSS Filter Assembly

1шт.

2

89500417389

PLATE

1шт.

3

89500417390

SUPPORT

1шт.

4

89500413896

SEALING WASHER

1шт.

5

89500408623

ADAPTER

1шт.

6

89500409101

SWITCH

1шт.

7

8916629734

BOLT,M12 x 25mm

M12 x 25

4шт.

8

8900140473

WASHER

4шт.

9

8900116825

BOLT

M16 x 40

2шт.

10

8900110597

WASHER

BEVEL

2шт.

11

8900102200

BOLT,M14 x 40mm

M14 x 40

2шт.

12

8900141457

COLLAR

2шт.

13

8900124155

NUT

2шт.

14

8900191133

FLANGE

SPLIT

6шт.

15

8917289480

O-RING

SEALRING

3шт.

16

8900125707

BOLT,M10 x 30mm

M10 X 30

12шт.

17

8900001049

LOCK WASHER

12шт.

18

89500408432

HYD CONNECTOR

1шт.

19

89500406117

HYD CONNECTOR

1шт.

20

NSS

NOT SOLD SEPARAT

VALVE BLOCK ASSY; PN 8998340959 If Used - Not Illustrated - Ref Figure 43N00000003 For Service Breakdown

1шт.

21

8900134882

SCREW,M10 x 90mm

M10 x 90

4шт.

22

8900134881

COLLAR

4шт.

23

89500406108

CONNECTION

ELBOW

1шт.
