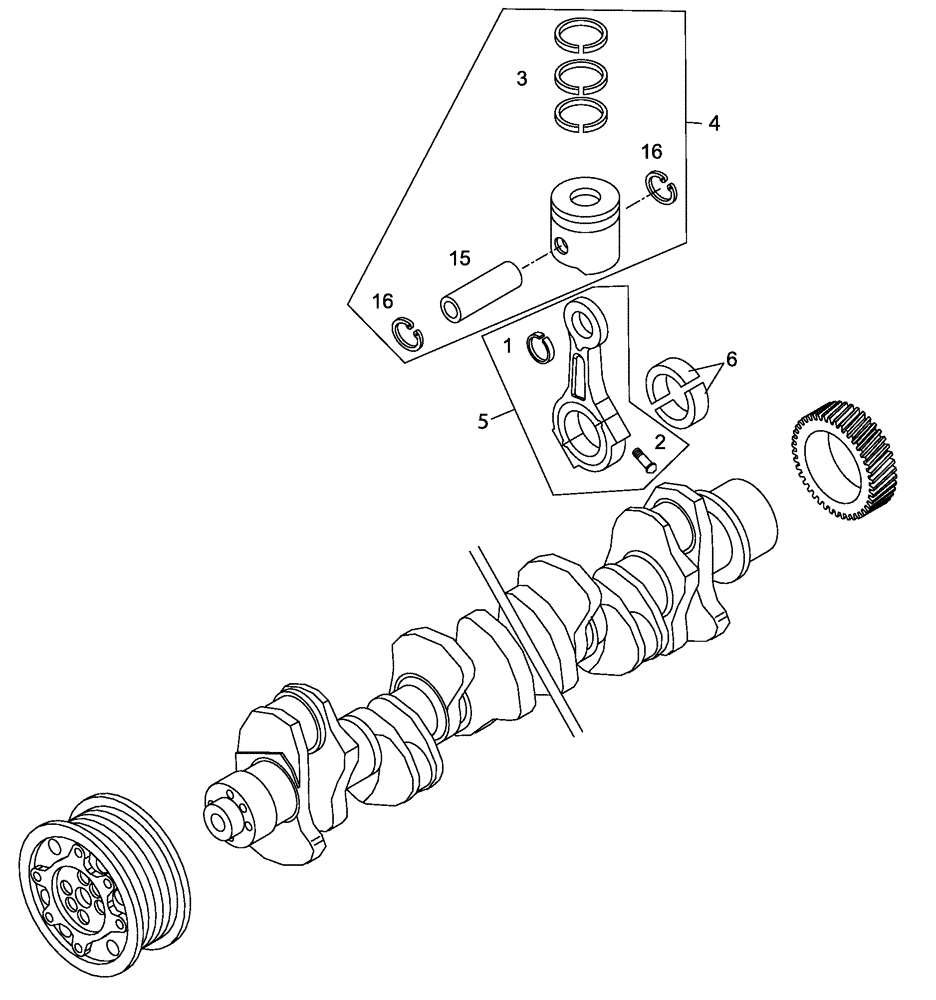

Запчасти Case 335 (01A07030156[001]) - ENGINE - PISTONS (87363377) (01) - ENGINE

1

99460197

BUSHING

6шт.

2

99431774

BOLT

18шт.

3

2992157

SET OF RINGS

PISTON RINGS - STD

6шт.

4

504094074

PISTON ASSY

STD

6шт.

Include(s) 3, 15, 16

1шт.

5

99444576

CONNECTING ROD

6шт.

504028545R

REMAN-CONNECTING ROD

"335 TIER 3 (9/06)- SN HHD000510 & HHD000511 & N6PG58015, Reman For New P/N: 99444576"

6шт.

504028545C

CORE-ROD CONNECTING

Return Number

1шт.

Include(s) 1, 2

1шт.

6

2992165

SET OF CONN ROD BRGS U/S,0.508, Green

STD - RED

2шт.

6

2992164

SET OF CONN ROD BRGS U/S,0.508, Red

STD - GREEN

2шт.

6

2992163

SET OF CONN ROD BRGS U/S,0.254, Green

-0,127 - RED BLACK

2шт.

6

2992162

SET OF CONN ROD BRGS U/S,0.254, Red

-0,127 - GREEN BLACK

2шт.

6

504021167

BEARING HALF

-0,254 - RED

1шт.

6

504021168

BEARING HALF

-0,254 - GREEN

1шт.

6

504021169

BEARING HALF

-0,508

1шт.

6

504021170

BEARING HALF

-0,508 - GREEN

1шт.

6

500360403

CRANKSHAFT BEARING

2шт.

15

504006110

PISTON PIN

1шт.

16

16877276

LOCKING RING

2шт.
