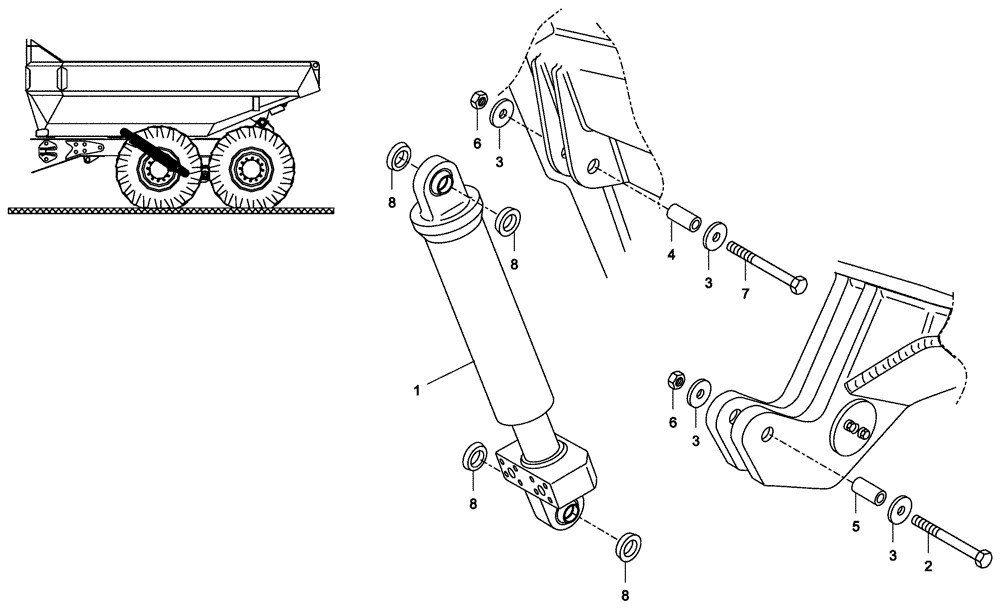

Запчасти Case 335 (72A00010719[001]) - DUMPING SYSTEM - HOIST CYLINDER INSTALLATION (19) - OPTIONS

1

89500410831

CYLINDER,Double Acting, 104mm Rod

See Figure 72A00010719-02

2шт.

2

8900127559

STUD

M12 x 1.75 x 160

2шт.

3

8960030021

SPACER

D.12

8шт.

4

8960530076

PIN

2шт.

5

8960530070

PIN,50mm OD x 129mm L

2шт.

6

8900160490

NUT

M12

4шт.

7

8900124681

BOLT

M12 x 130

2шт.

8

89500407631

SPACER

8шт.
