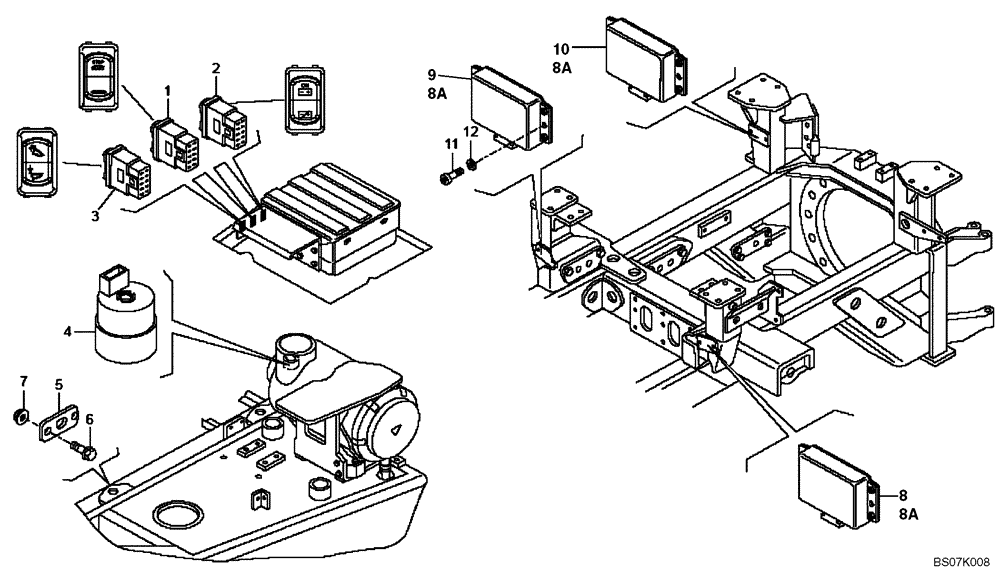

Запчасти Case 335 (67A01031463[001]) - ELECTRICAL CIRCUIT - ELECTRICAL ACCESSORIES - FRONT FRAME (87551846) (13) - Electrical System / Decals

1

89500409383

SWITCH ASSY

START-STOP

1шт.

2

89500409382

SWITCH

BATTERY DISCONNECT

1шт.

3

89500418402

SWITCH

ENGINE HOODS - CAB DUMPING

1шт.

4

89500411620

INDICATOR

1шт.

5

89500409030

PLATE

1шт.

6

8900124628

BOLT

M6 x 20

2шт.

7

8900125009

NUT

2шт.

8

89500410638

CONTROL UNIT

MIDAC1; If Used, Serial Range: -HHD000509

1шт.

8a

89500425510

CONTROL UNIT

MIDAC; Replaces 89500420551 MIDAC; If Used, Serial Range: HHD000510-HHD000511

3шт.

8a

89500425510

CONTROL UNIT

MIDAC; Replaces 89500420551 MIDAC; If Used, Start Serial: N6PG58015

3шт.

9

89500410639

CONTROL UNIT

MIDAC2; If Used, Serial Range: -HHD000509

1шт.

10

89500410640

CONTROL UNIT

MIDAC3; If Used, Serial Range: -HHD000509

1шт.

11

8916687724

BOLT,M5 x 10mm

6шт.

12

8900002078

LOCK WASHER

6шт.
