(67A00001452[001]) - WIRINGS - DRIVER CAB

Запчасти Case 335 (67A00001452[001]) - WIRINGS - DRIVER CAB (13) - Electrical System / Decals

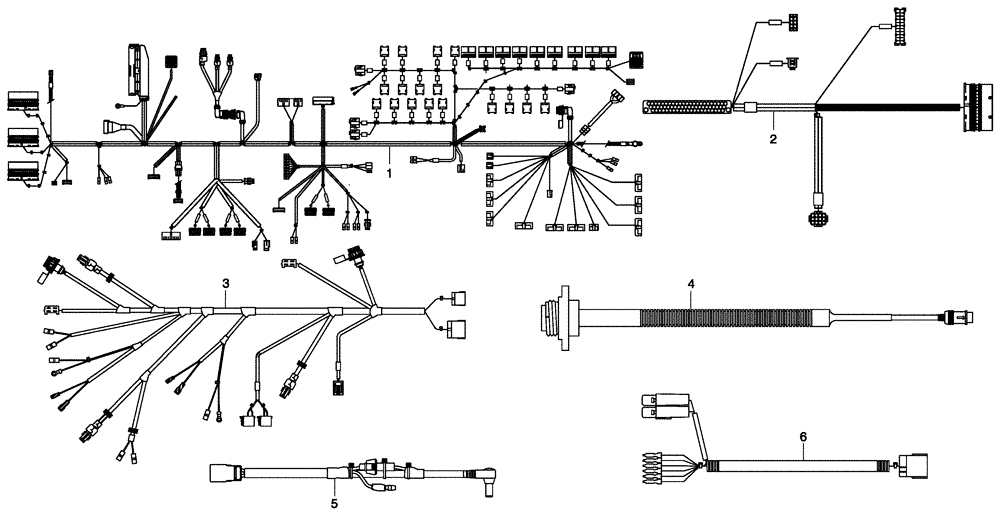

Схема запчастей Case 335 - (67A00001452[001]) - WIRINGS - DRIVER CAB (13) - Electrical System / Decals
4
2
6
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500408927

WIRE HARNESS

DRIVER CAB (Bulkhead Connector - 1 White, 1 Brown, 1 Green)

1шт.

2

89500408930

WIRE HARNESS

GEARBOX-DRIVERCAB (Bulkhead Connector - 1 Yellow)

1шт.

3

8900192867

WIRE HARNESS

CEILING LIGHT

1шт.

4

89500408935

WIRE HARNESS

MONITOR CAB

1шт.

5

89500403276

WIRE HARNESS

INPUT MONITOR

1шт.

6

89500405070

WIRE HARNESS

INPUT FLEET-LINK

1шт.

Выбрано товаров: 6
