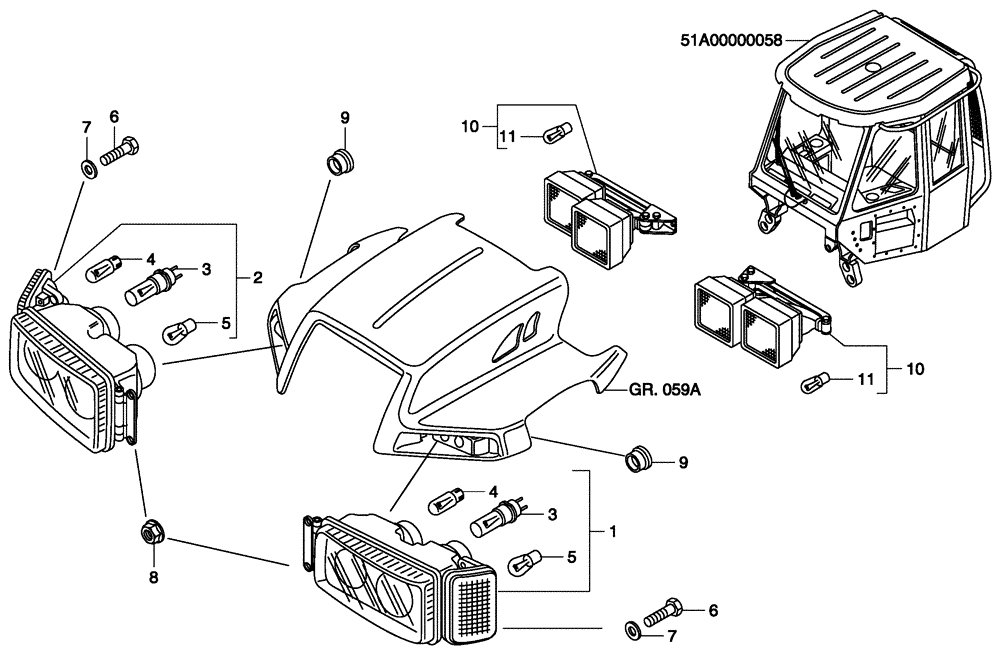

Запчасти Case 335 (67A00001449[001]) - FRONT LIGHTING (87458557) (13) - Electrical System / Decals

1

89504238532

HEADLAMP

Assy; LH, Includes References 3 - 5

1шт.

Include(s) 3, 4, 5

1шт.

2

89504238496

HEADLAMP,24V

RH

1шт.

Include(s) 3, 4, 5

1шт.

3

8916739295

BULB

Replaces 89504071924 Bulb 24V-70W

4шт.

4

8914144290

BULB

24V-5W

2шт.

5

8918117791

BULB

24V-21W

2шт.

6

8916586424

BOLT,M8 x 25mm

M8 x 25

4шт.

7

8900141638

COLLAR

M8 x 22

4шт.

8

8900115122

NUT

M8

4шт.

9

89500410032

PLUG

4шт.

10

8900127241

SEALED BEAM UNIT

2шт.

Include(s) 11

1шт.

11

8900132380

BULB

24V-70W

4шт.
