Запчасти Case 335 (49A00010898[002]) - PNEUMATIC SYSTEM MODIFICATION (UPGRADE BULLETIN W0706) (09) - Implement / Hydraulics / Frame / Brakes

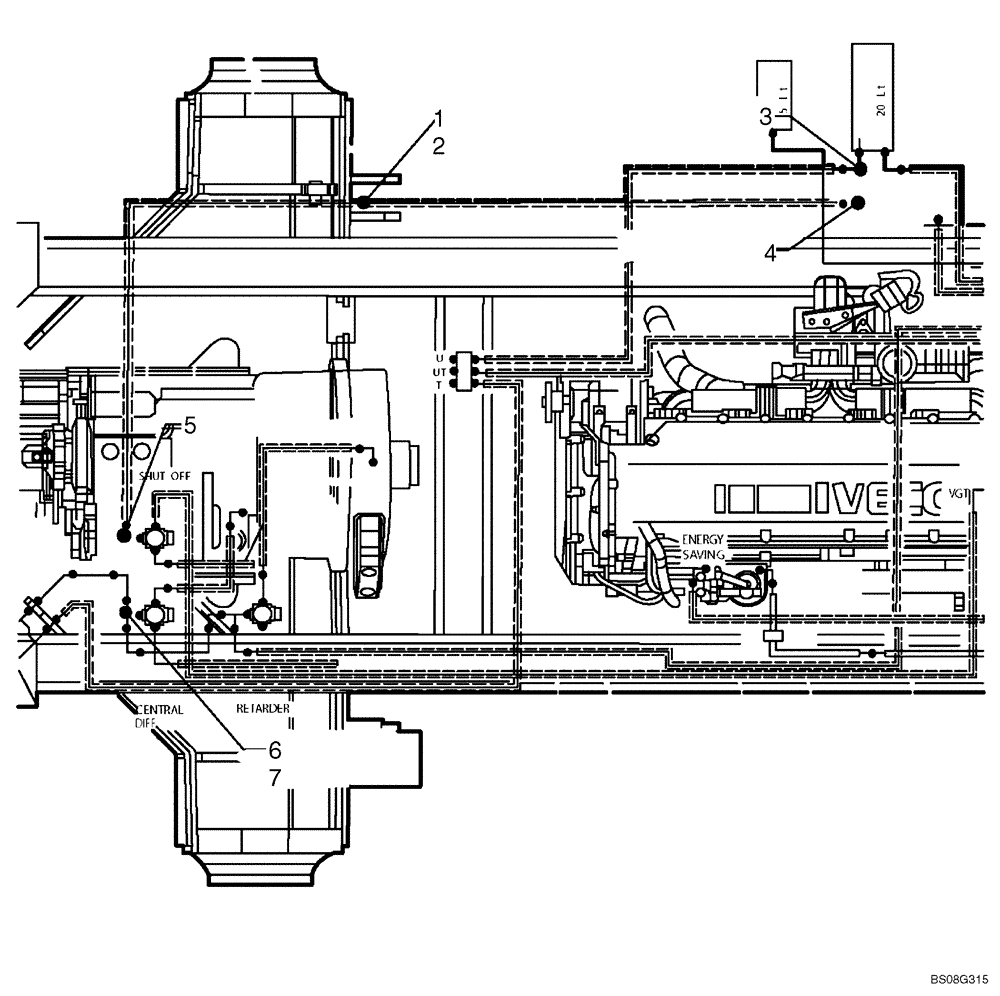

Схема запчастей Case 335 - (49A00010898[002]) - PNEUMATIC SYSTEM MODIFICATION (UPGRADE BULLETIN W0706) (09) - Implement / Hydraulics / Frame / Brakes
1
2
6
4
5
3
7

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Dealer Installed Parts; See Product Upgrade Program Bulletin W0706 For Model 335 Tier 2 P.I.N. HHD000501 to HHD000510 / Model 340 Tier 2 P.I.N., Serial Range: HHD000701-HHD000764

1шт.

1

8998295211

HOSE

1шт.

2

8998295153

HOSE

Corrugated, 7mm / 23 ft

1шт.

3

8998420790

TEE

1шт.

4

89004824679

FITTING, 90; Air Tank

1шт.

5

89004824675

FITTING, 90; Shut-Off Valve

1шт.

6

89500316209

HYD CONNECTOR

1шт.

7

8900316288

FITTING, 3 Way

1шт.

Выбрано товаров: 8
